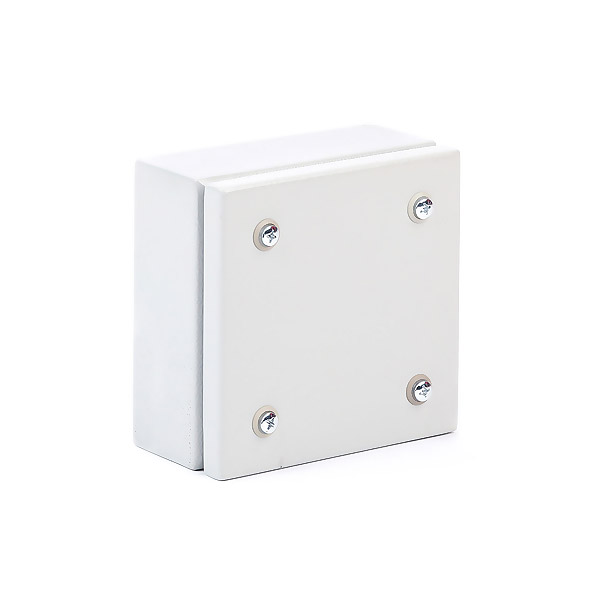

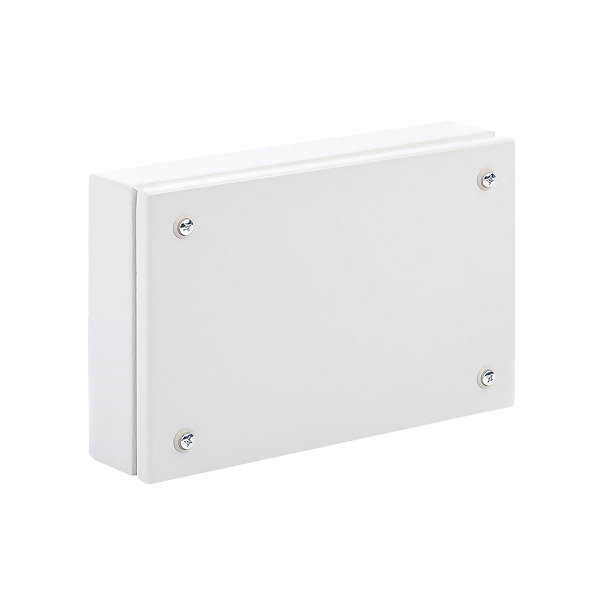

Steel Junction Box

Steel Junction Box

Technical Data / Info Photo Gallery PDF Documents Product Certificates Quick enquiry

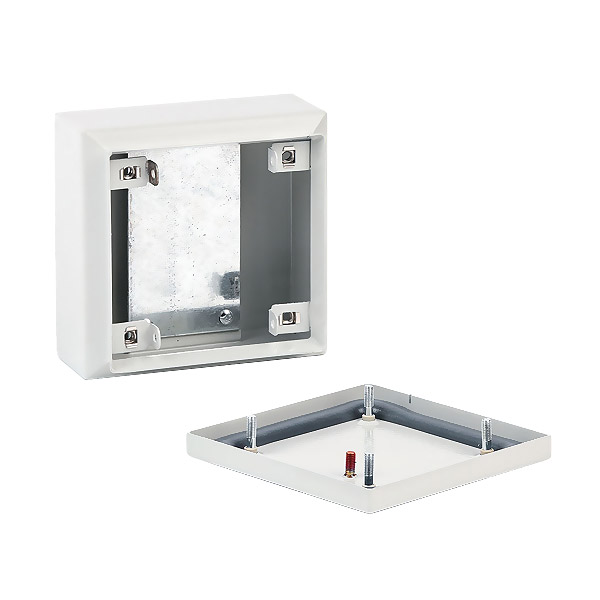

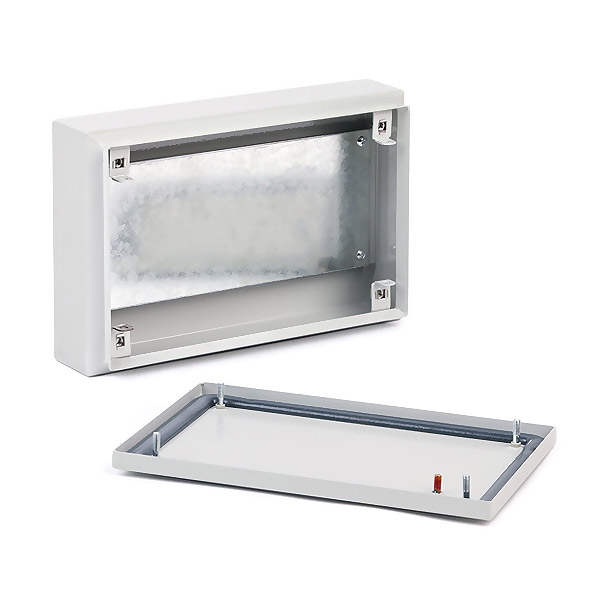

Enclosure and Cover fixed by captive screws M5X35, Both side of body have gutter steel plate with fixing hole, Polyurethane door seal.
Degree of protection: IP66 to EN60529
External mechanical impact resistance: IK10
Surace teatment:
Textrured epoxy plyester powder coating
Meterial: Cold roll steel
Colour: RAL7032 or RAL7035

View all
Category: Wall Mounting Enclosure
Standard Configuration Selection Table PDF Documents Product Certificates
Standard Configuration

Enclosure and Cover fixed by captive screws M5 x 35, Both side of body have gutter steel plate with fixing hole, Polyurethane door seal.
Degree of protection: IP66 to EN60529
External mechanical impact resistance: IK10
Surace treatment:
Textrured epoxy polyester powder coating
Material: Cold roll steel
Colour: RAL7032 or RAL7035


Selection Table
ModelHWD
JB1515815015080
JB151512150150120
JB2020820020080
JB202012200200120
JB3020830020080
JB301512300150120
JB302012300200120
JB302015300200150
JB303012300300120
JB402018400200180
JB403012400300120
