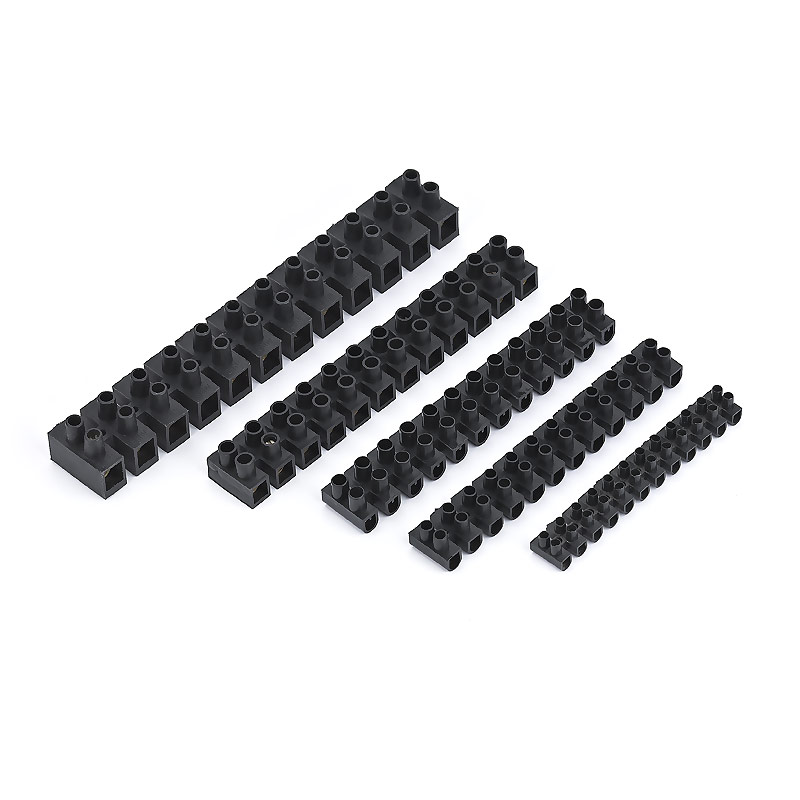

Type: H type, U type
Color: White, Black, other color is also available.
Material: Made of PA, PE or PP.
Type: H type, U type
Color: White, Black, other color is also available.
Material: Made of PA, PE or PP.

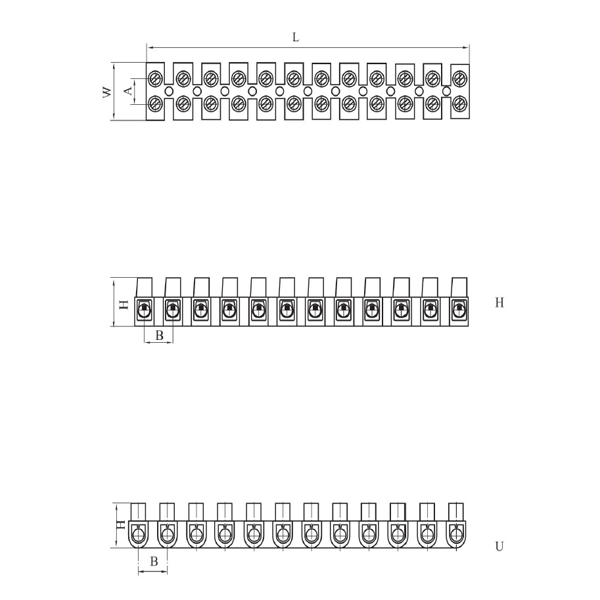

| Current | Cable Size mm² | Pole No. | Volt. | L | W | H | A | B |
|---|---|---|---|---|---|---|---|---|
| 3A | 2.5 | 12 | 400V | 93 | 16 | 12 | 6 | 8 |
| 6A | 6 | 12 | 400V | 115 | 15.7 | 13 | 6.5 | 9.5 |
| 10A | 10 | 12 | 400V | 126 | 20.2 | 15.5 | 8.4 | 10.5 |
| 15A | 12 | 12 | 400V | 139 | 23 | 17.7 | 10.3 | 12 |
| 20A | 14 | 12 | 400V | 155 | 25 | 19.2 | 11.5 | 13.5 |
| 30A | 16 | 12 | 400V | 171 | 26 | 20.5 | 12 | 14.5 |
| 60A | 25 | 12 | 400V | 192 | 30 | 26 | 13.5 | 16.5 |
| 80A | 30 | 12 | 400V | 205 | 33 | 27 | 15 | 17 |
| 100A | 35 | 12 | 400V | 250 | 46 | 31 | 22 | 21 |
| 150A | 40 | 12 | 400V | 270 | 46 | 38 | 22 | 23 |
