Metal Clad Modular Enclosures

Metal Clad Modular Enclosures

Technical Data / Info Photo Gallery PDF Documents Product Certificates Quick enquiry

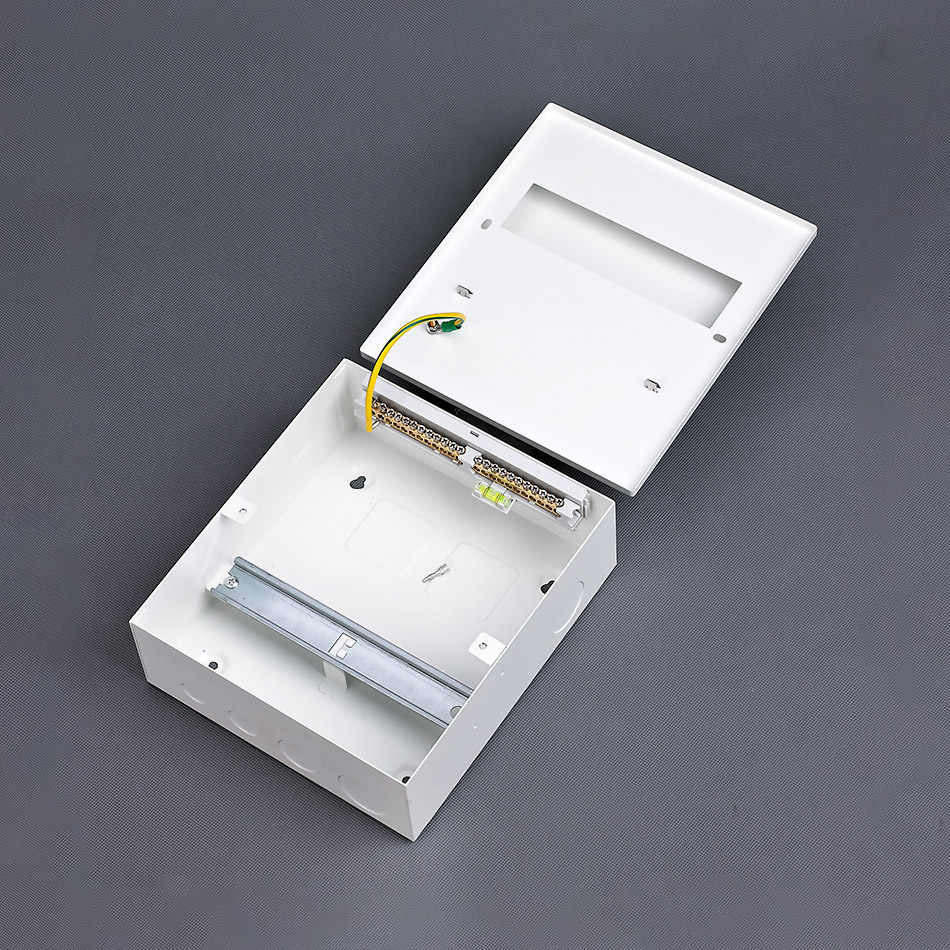

Enclosure, cover linked with neutral terminal by flexible wires, knock down holes on top and bottom
Material: cold roll steel
surface treatment: powder coating
Degree of protection: IP45

View all
Category: Plastic Enclosure
Standard Configuration Selection Table PDF Documents Product Certificates
Standard Configuration

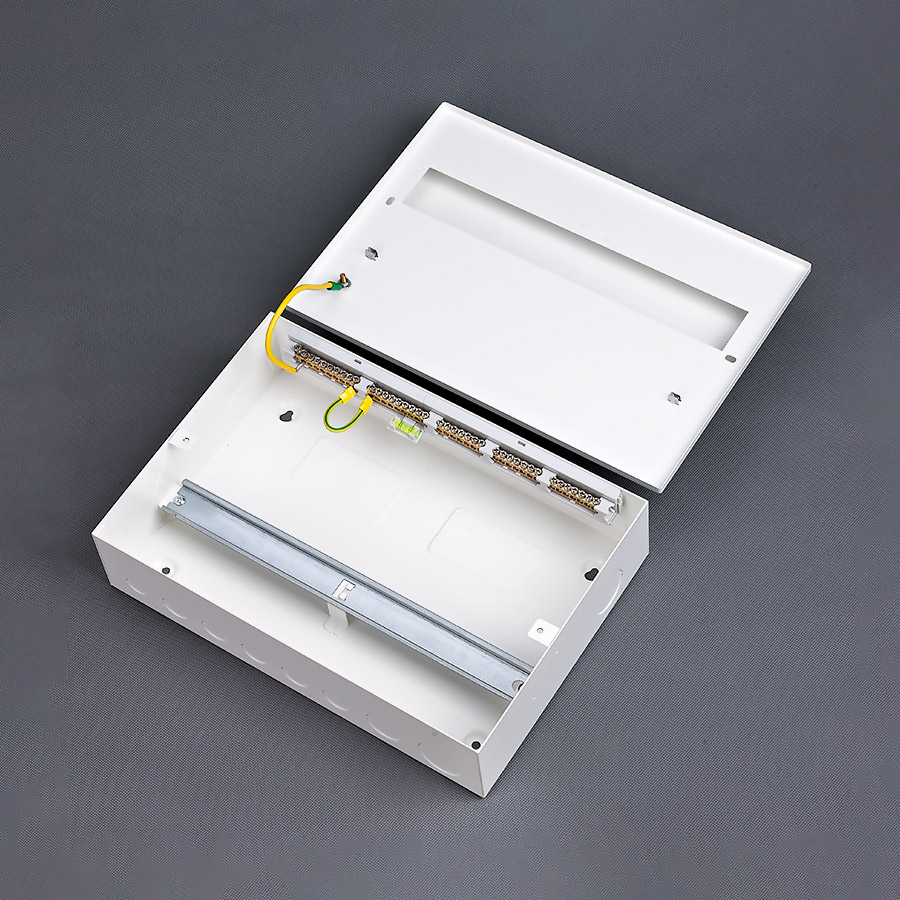

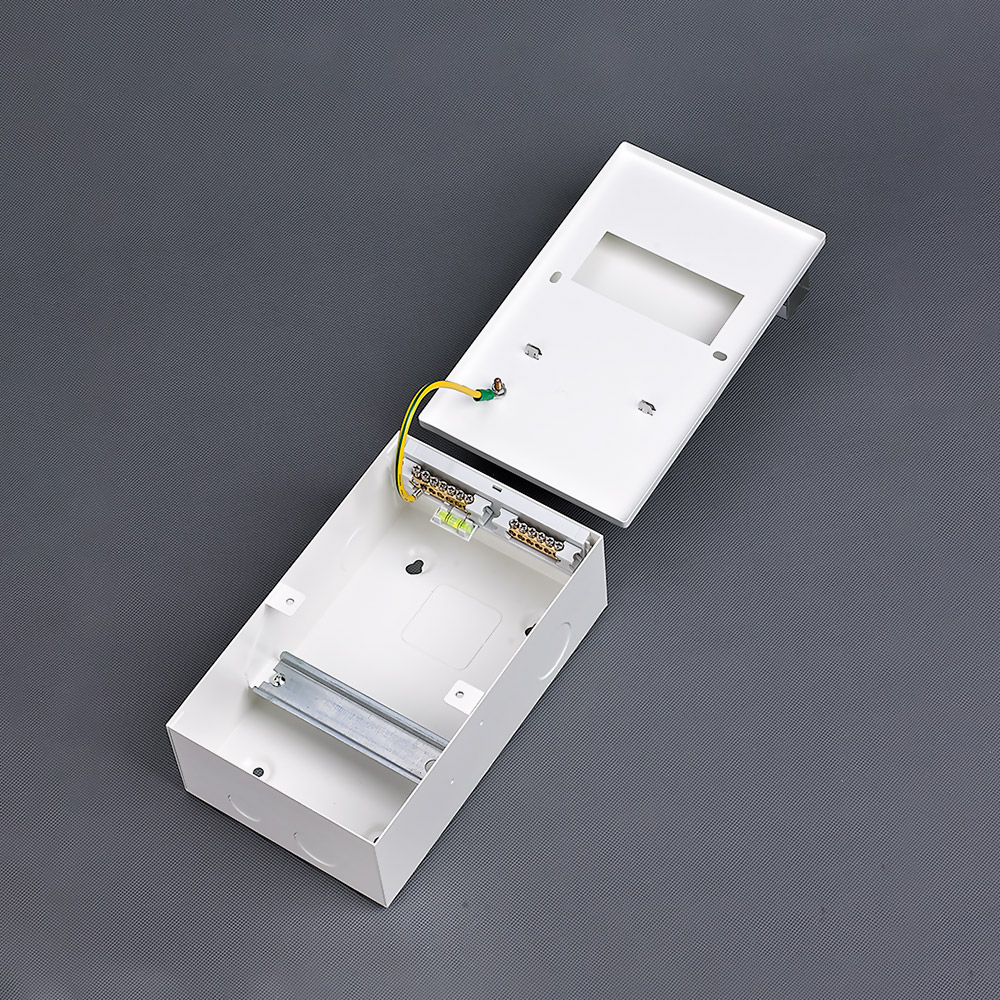

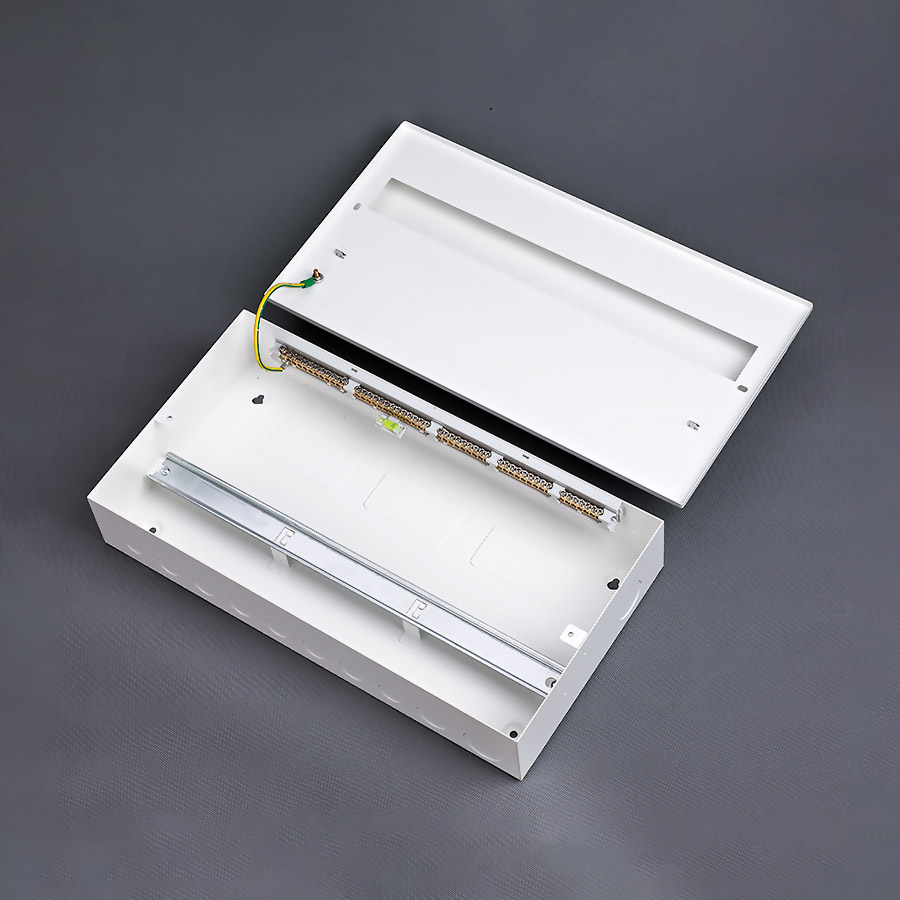

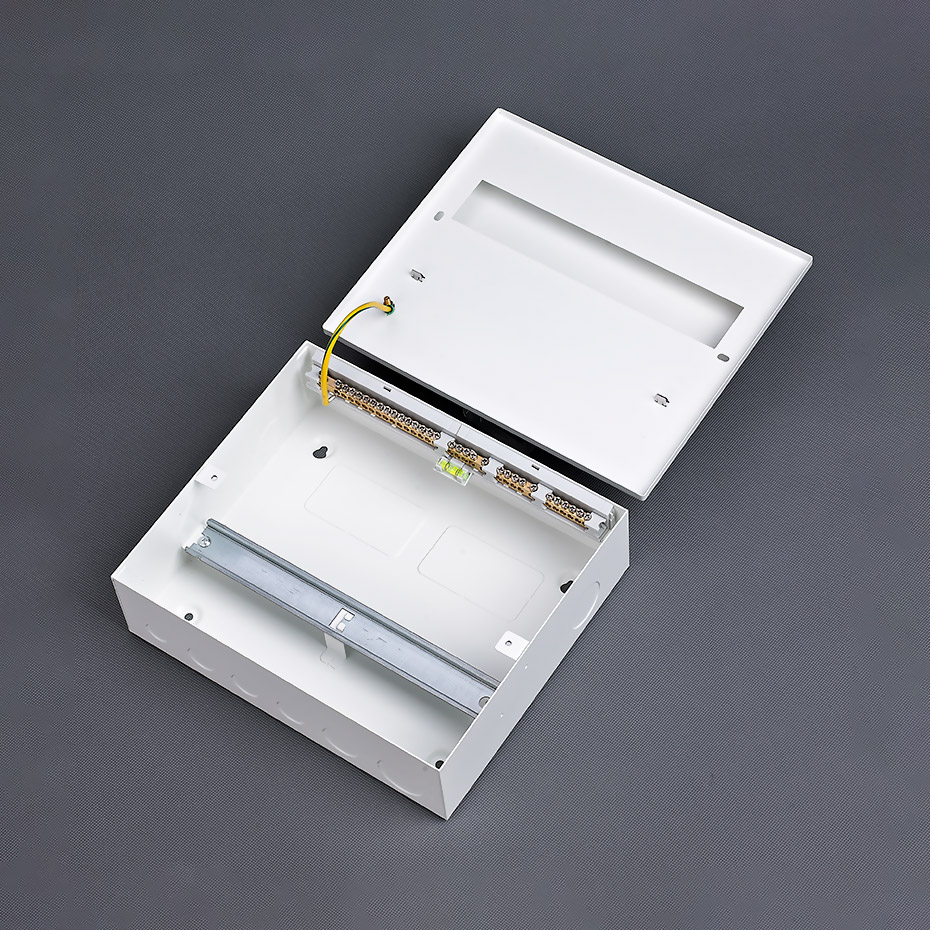

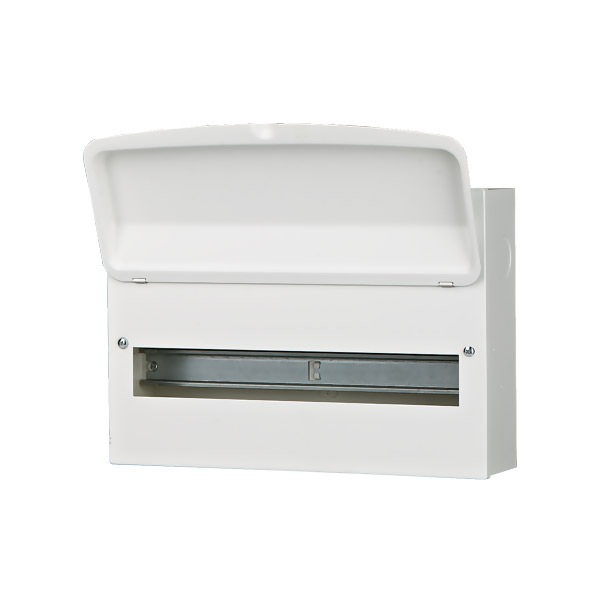

Enclosure, cover linked with neutral terminal by flexible wires, knock down holes on top and bottom
Material: cold roll steel
surface treatment: powder coating
Degree of protection: IP45

Selection Table
ModelNo. of modulessizeweight

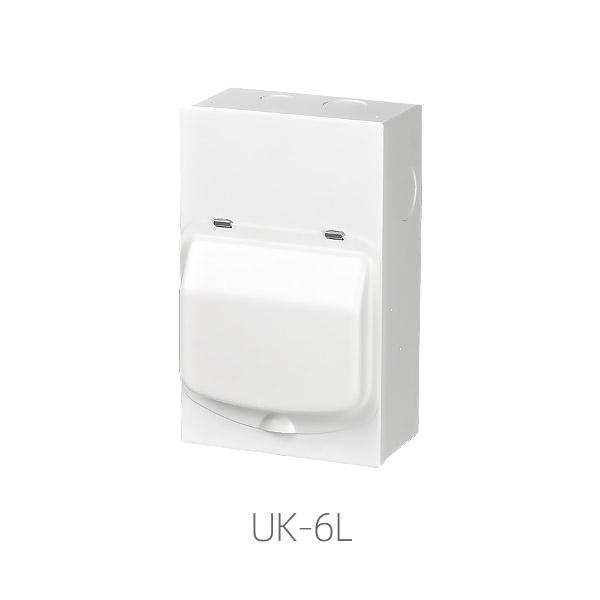

UK-6L1X6 DIN RAIL260X162X871800g

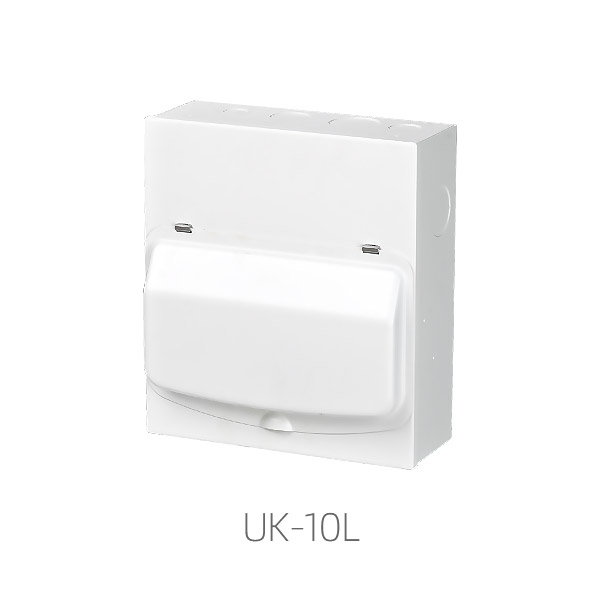

UK-10L1X10 DIN RAIL260X234X872500g
UK-14L1X14 DIN RAIL260X306X873015g

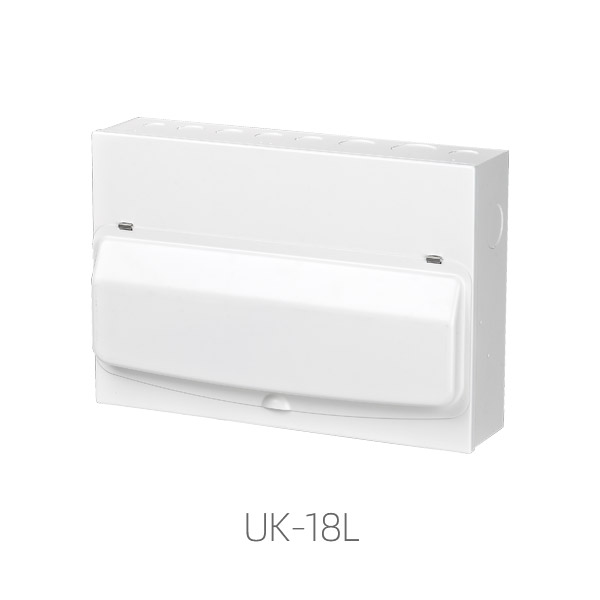

UK-18L1X18 DIN RAIL260X378X873652g
UK-24L1X24 DIN RAIL260X486X874500g
