Single Door Wall Mounting Enclosure

Technical Data / Info Photo Gallery PDF Documents Product Certificates Quick enquiry

Standard Configuration:

Enclosure and door, mounting plate, Bar Lock, Polyurethane door seal, Cable gland plate, gasket and accessories.
Degree of protection: IP66 to EN60529
External mechanical impact resistance: IK10
Surface teatment:
Textrured epoxy plyester powder coating
Meterial and color:
Body and front door: Cold roll stell to paint in RAL7035 or RAL7032

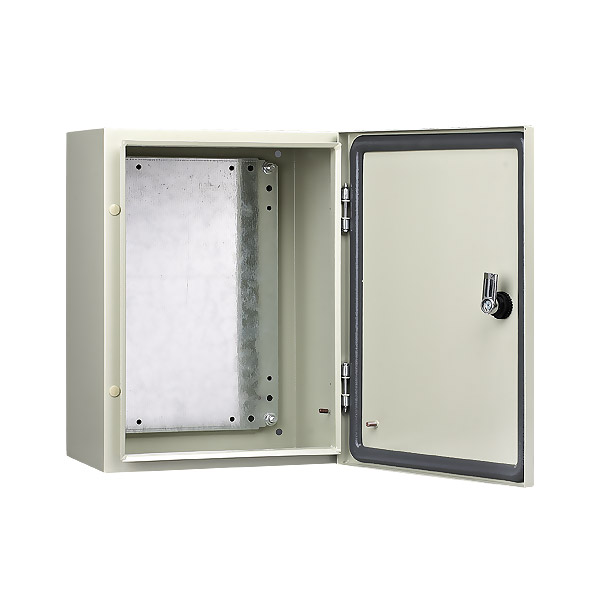

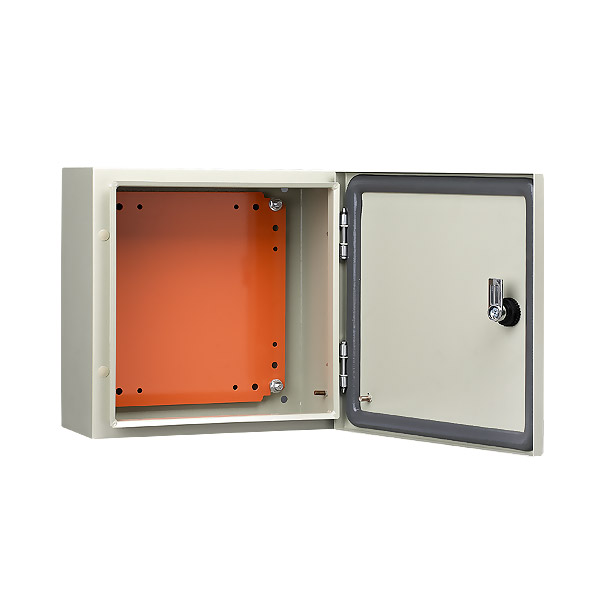

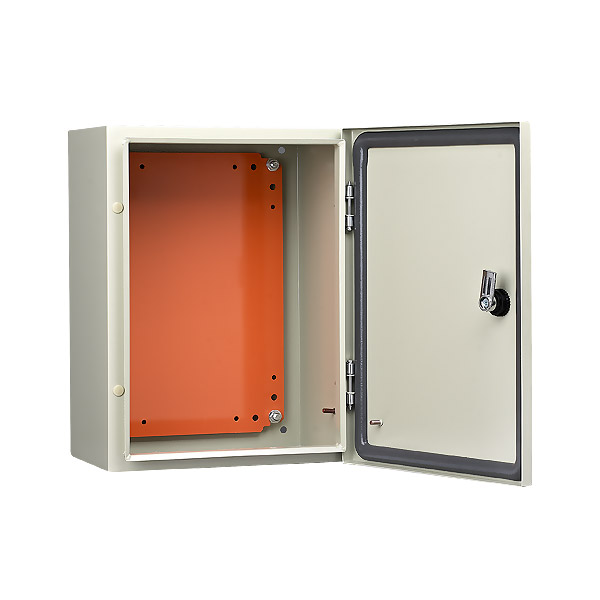

Mounting plate: Galvanized steel or plain steel to paint in RAL2004 smooth finish

View all

Category: Wall Mounting Enclosure

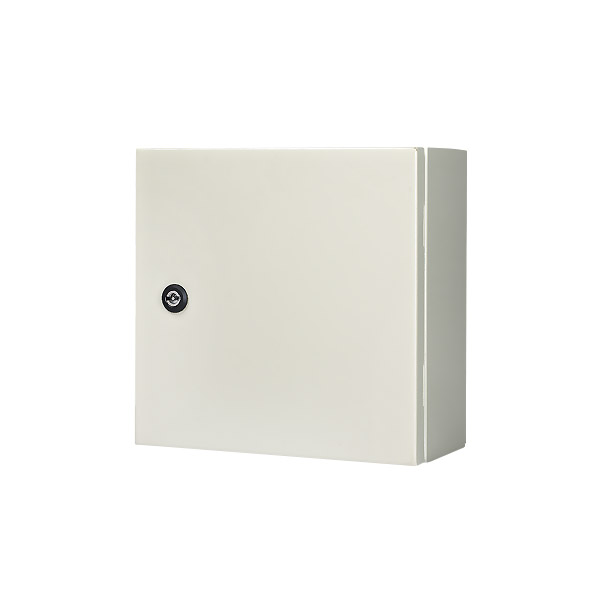

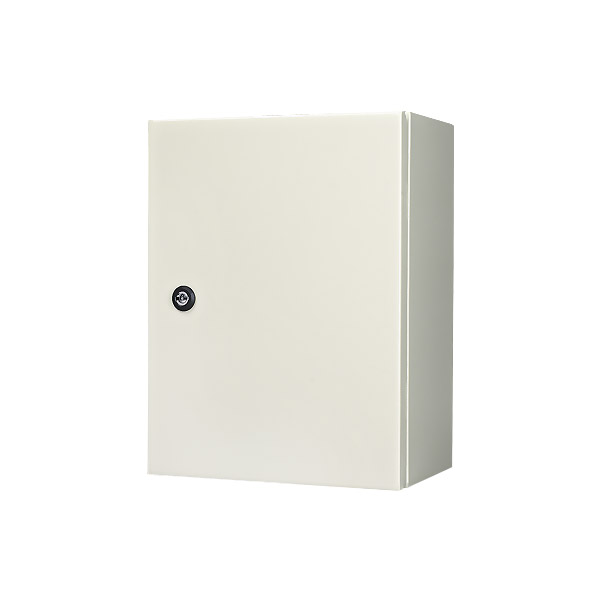

Photo Gallery(Single Door Wall Mounting Enclosure)

Standard Configuration

Enclosure and door, mounting plate, Bar Lock, Polyurethane door seal, Cable gland plate, gasket and accessories.
Degree of protection: IP66 to EN60529
External mechanical impact resistance: IK10
Surface treatment:
Textrured epoxy polyester powder coating
Material and color:
Body and front door: Cold roll steel to paint in RAL7035 or RAL7032
Mounting plate: Galvanized steel or plain steel to paint in RAL2004 smooth finish

Selection Table

Model	H	W	D	No.of lock	Gland open
ME202015	200	200	150	1	O
ME252015	250	200	150	1	O
ME252515	250	250	150	1	O
ME302015	300	200	150	1	O
ME302020	300	200	200	1	O
ME302515	300	250	150	1	O
ME302520	300	250	200	1	O
ME302525	300	250	250	1	O
ME303015	300	300	150	1	A
ME303020	300	300	200	1	A/B
ME403015	400	300	150	1	A
ME403020	400	300	200	1	A/B
ME404015	400	400	150	1	C
ME404020	400	400	200	1	D
ME503020	500	300	200	1	A/B
ME504015	500	400	150	1	C
ME504020	500	400	200	1	D
ME505020	500	500	200	2	E
ME604020	600	400	200	2	D
ME605020	600	500	200	2	E
ME605025	600	500	250	2	E
ME606020	600	600	200	2	E
ME606025	600	600	250	2	E
ME606030	600	600	300	2	E`
ME705020	700	500	200	2	E
ME705025	700	500	250	2	E
ME705030	700	500	300	2	E
ME706020	700	600	200	2	E
ME806020	800	600	200	2	E
ME806025	800	600	250	2	E
ME806030	800	600	300	2	E
ME806040	800	600	400	2	E
ME808020	800	800	200	2	F
ME808025	800	800	250	2	F
ME808030	800	800	300	2	F
ME906020	900	600	200	2	E
ME906025	900	600	250	2	E
ME906030	900	600	300	2	E
ME907020	900	700	200	2	E
ME907025	900	700	250	2	E
ME1006025	1000	600	250	2	E
ME1006030	1000	600	300	2	E
ME1008020	1000	800	200	2	F
ME1008025	1000	800	250	2	F
ME1008030	1000	800	300	2	F
ME10010025	1000	1000	250	2	G
ME1206025	1200	600	250	3	E
ME1206030	1200	600	300	3	E
ME1208025	1200	800	250	3	F
ME1208030	1200	800	300	3	F
ME12010025	1200	1000	250	3	G
ME12010030	1200	1000	300	3	G
ME1408025	1400	800	250	3	F
ME1408030	1400	800	300	3	F
ME1408035	1400	800	350	3	F
ME1408040	1400	800	400	3	F
ME1608025	1600	800	250	3	F
ME1608030	1600	800	300	3	F
ME1608035	1600	800	350	3	F
ME1608040	1600	800	400	3	F

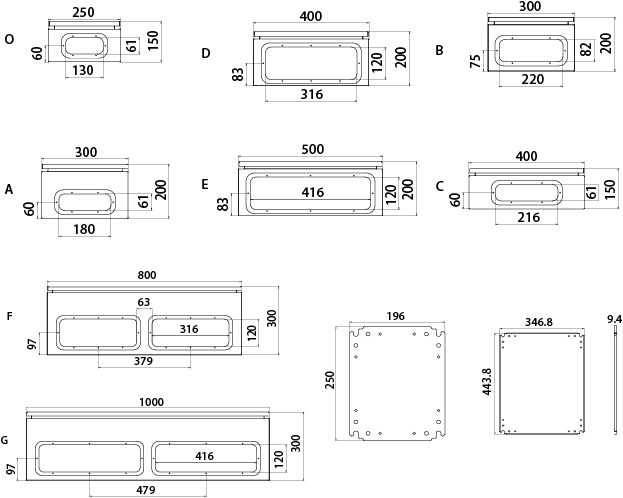

Gland opening diagram
