Insulated Female Connectors

Technical Data / Info Photo Gallery PDF Documents Product Certificates Quick enquiry

View all

Category: Wiring Accessories

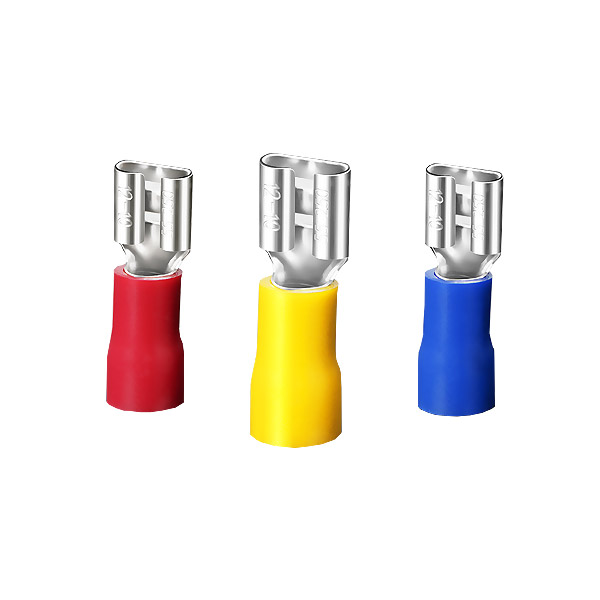

Photo Gallery(Insulated Female Connectors)

Selection Table Diagram PDF Documents Product Certificates

Selection Table

0.5~1.5mm²(22-16) Imax=10A

Item No.	Mema Tab	Thickness of Material	Dimension					Color
Item No.	Mema Tab	Thickness of Material	B	dΦ	DΦ	L	H	Color
FDD1.25-110(5)	0.5 × 2.8	0.3	3.8	1.70	3.80	19.0	10.0	Red
FDD1.25-110(8)	0.8 × 2.8	0.3	3.8	1.70	3.80	19.0
FDD1.25-187(5)	0.5 × 4.75	0.35	5.6	1.70	3.80	19.0
FDD1.25-187(8)	0.8 × 4.75	0.35	5.6	1.70	3.80	19.0
FDD1.25-205	0.5 × 5.2	0.35	6.5	1.70	3.80	20.0
FDD1.25-250	0.8 × 6.35	0.4	7.4	1.70	3.80	21.0

1.5~2.5mm²(16-14) Imax=15A

Item No.	Mema Tab	Thickness of Material	Dimension					Color
Item No.	Mema Tab	Thickness of Material	B	dΦ	DΦ	L	H	Color
FDD2-110(5)	0.5 × 2.8	0.3	3.8	2.30	4.30	19.0	10.0	Blue
FDD2-110(8)	0.8 × 2.8	0.3	3.8	2.30	4.30	19.0
FDD2-187(5)	0.5 × 4.75	0.35	5.6	2.30	4.30	19.0
FDD2-187(8)	0.8 × 4.75	0.35	5.6	2.30	4.30	19.0
FDD2-205	0.5 × 5.2	0.35	6.5	2.30	4.30	20.0
FDD2-250	0.8 × 6.35	0.4	7.4	2.30	4.30	21.0
FDD2-312	0.8 × 8.0	0.4	9.0	2.30	4.30	23.0

4~6mm²(12-10) Imax=24A

Item No.	Mema Tab	Thickness of Material	Dimension					Color
Item No.	Mema Tab	Thickness of Material	B	dΦ	DΦ	L	H	Color
FDD5.5-250	0.8 × 6.35	0.4	7.4	3.4	5.7	25.0	13.0	Yellow
FDD5.5-375	1.2 × 9.4	0.5	10.9	3.4	5.7	29.6	13.0	Yellow

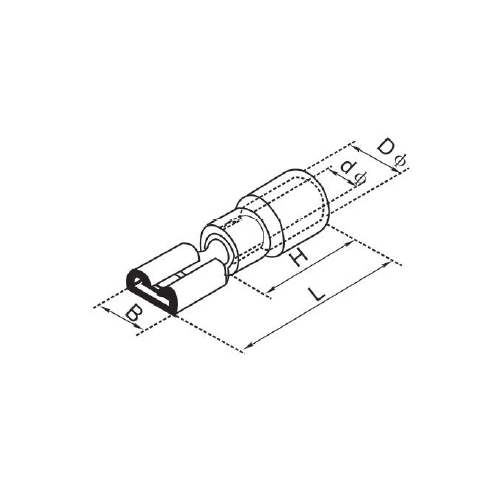

Diagram
