JSH PVC Coated Flexible Metal Conduit

Technical Data / Info Photo Gallery PDF Documents Product Certificates Quick enquiry

Extra flexible with excellent mechanical strength
Thin, vacuum extruded jacket has minimal effect on the core flexibility
PVC jacket is UV Resistant
Helically wound, hot dipping galvanized steel core, for superior strength
Flame self-extinguish

View all

Category: Wiring Accessories

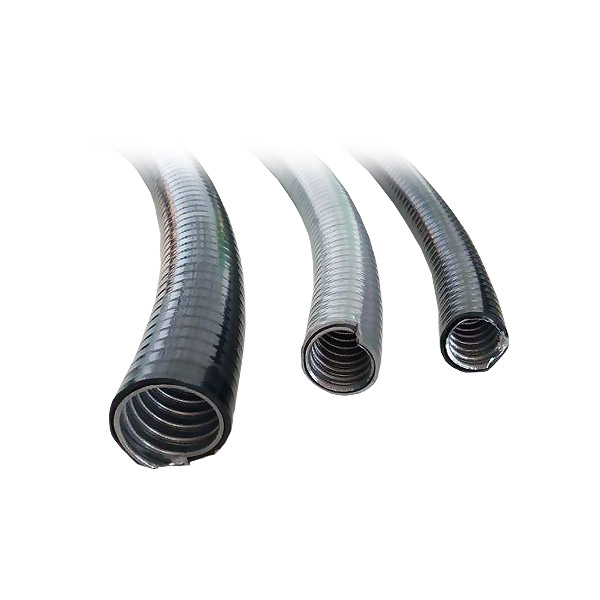

Photo Gallery(JSH PVC Coated Flexible Metal Conduit)

Overview

Extra flexible with excellent mechanical strength Thin,vacuum extruded jacket has minimal effect on the core flexibility Helically wound,hot dipping galvanized steel core, for superior strength Flame self-extinguish

Selection Table

Item No.	Size (inch)	B	A	C	Reel Length
Item No.	Size (inch)	Internal Dia. (mm)	External Dia. (mm)	Min. Bend Radius(mm)	Reel Length
JSH-8	-	8	11	25	200m
JSH-10	5/16"	10	13	30	100m
JSH-12	-	12	15	40	100m
JSH-13	3/8"	13	16	43	100m
JSH-16	1/2"	16	19	45	50m
JSH-19	-	19	23	50	50m
JSH-20	3/4"	20	24	50	50m
JSH-25	1"	25	29	57	50m
JSH-32	1 1/4"	32	36	70	30m
JSH-38	1 1/2"	38	43	80	30m
JSH-50	2"	50	55	95	20m
JSH-63	2 1/2"	63	70	140	10m
JSH-78	3"	78	85	150	10m
JSH-100	4"	100	109	190	10m
