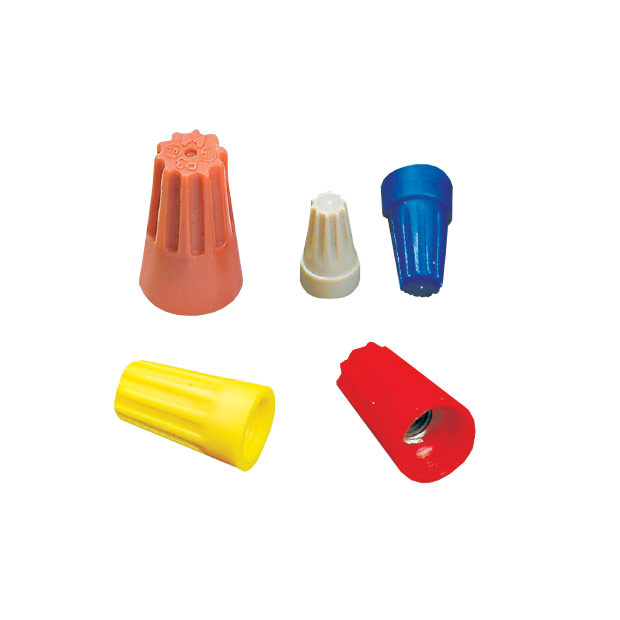

Selection Table
Material: UL Nylon 66, with spring inside.
Usage: peel wire coat, insert the wire in, then tighten.
| Item No. | H (mm) | W (mm) | D (mm) | Suiable Wires | Color |
|---|
| CP1 | 15 | 8.7 | 6.5 | MIN#20×1+#22×1 MAX#16×2 | Grey |
| CP2 | 18 | 10.0 | 7.5 | MIN#20×3 MAX#16×3 | Blue |
| CP3 | 23 | 11.2 | 9.5 | MIN#20×3 MAX#16×3+#18×1 | Orange |
| CP4 | 24.2 | 13.6 | 10.8 | MIN#14×1+#18×1 MAX#14×4+#18×1 | Yellow |
| CP6 | 27.8 | 16.1 | 12.7 | MIN#14×2 MAX#10×2+#12×2 | Red |
