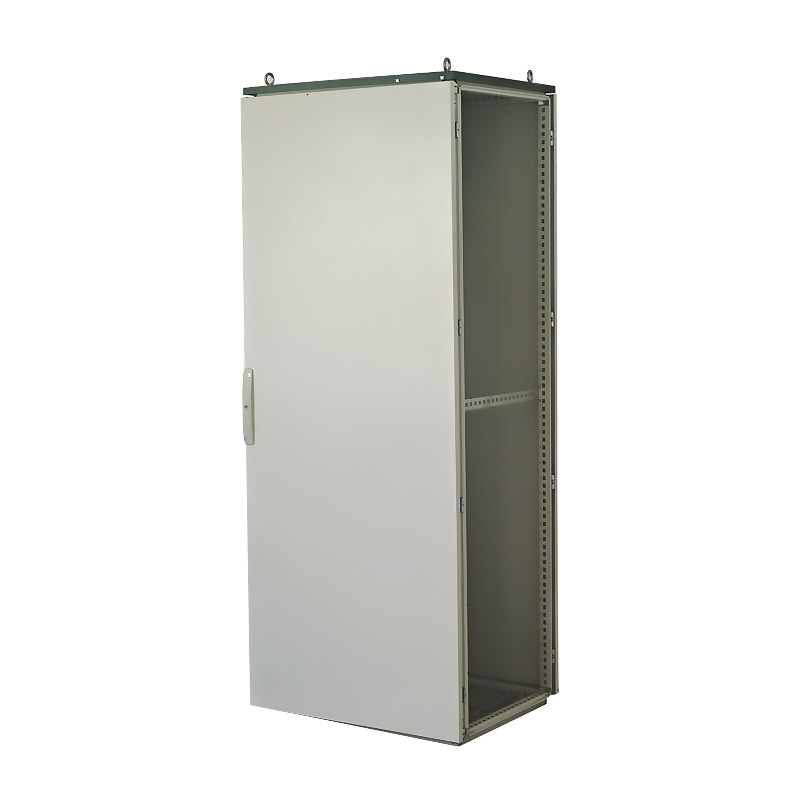

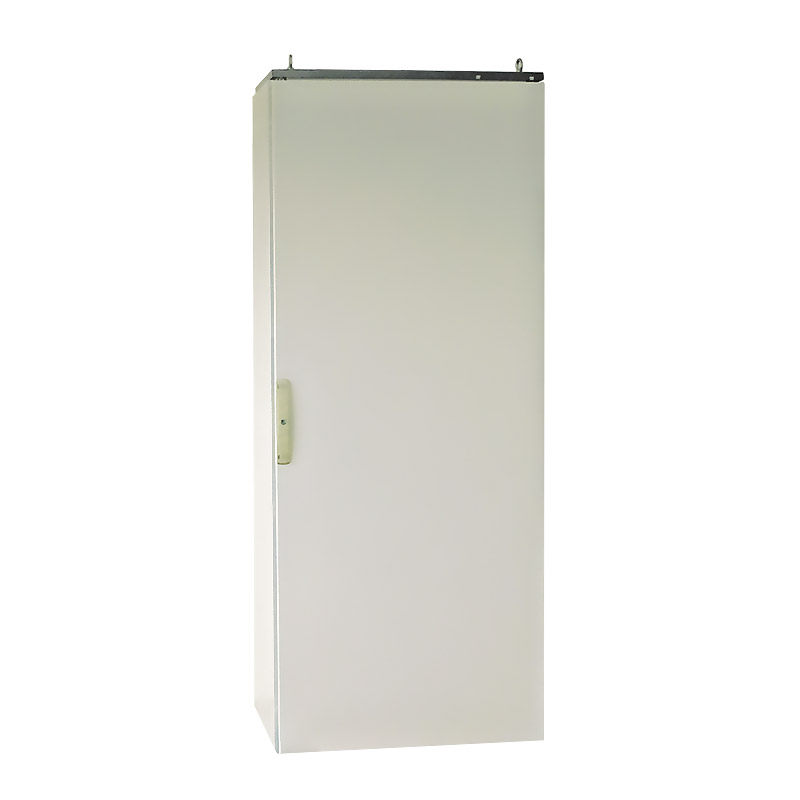

Floor Standing Assembling Cabinet

Floor Standing Assembling Cabinet

Technical Data / Info Photo Gallery PDF Documents Product Certificates Quick enquiry

Enclosure frame and front door with reinforce
Mounting plate
Removable back panel
Handle Lock
Polyurethane door steel
Cable gland plate
4 lifing eyebolts
Degree of protection: IP55 to EN0529
External mechanical impact resistance: IK10
Surface treatment: Textrured epoxy polyester powder coating
Material and color:
Body and front door: Cold roll steel to paint in RAL7032
Mounting plate: Galvanized steel or plain steel to paint in RAL2004 smooth finish

View all
Category: Wall Mounting Enclosure
Standard Configuration Selection Table PDF Documents Product Certificates
Standard Configuration

Enclosure frame and front door with reinforce
Mounting plate
Removable back panel
Handle Lock
Polyurethane door steel
Cable gland plate
4 lifing eyebolts
Degree of protection: IP55 to EN0529
External mechanical impact resistance: IK10
Surface treatment: Textrured epoxy polyester powder coating
Material and color:
Body and front door: Cold roll steel to paint in RAL7032
Mounting plate: Galvanized steel or plain steel to paint in RAL2004 smooth finish

Selection Table
ModelH(mm)W(mm)D(mm)No.of door
FSA146414006004001
FSA146614006006001
FSA148414008004001
FSA148614008006001
FSA166516006005001
FSA166616006006001
FSA168416008004001
FSA1685-216008005002
FSA168516008005001
FSA168616008006001
FSA16104-2160010004002
FSA16105-2160010005002
FSA16124-2160012004002
FSA16125-2160012005002
FSA16126-2160012006002
FSA186418006004001
FSA186518006005001
FSA186618006006001
FSA188418008004001
FSA1884-218008004002
FSA188518008005001
FSA1885-218008005002
FSA188618008006001
FSA1886-218008006002
FSA18104180010004001
FSA18104-2180010004002
FSA18105-2180010005002
FSA18106-2180010006002
FSA18124-2180012004002
FSA18125-2180012005002
FSA18126-2180012006002
FSA204620004006001
FSA206520006005001
FSA206620006006001
FSA2084-220008004002
FSA208420008004001
FSA208520008005001
FSA208620008006001
FSA2086-220008006002
FSA208820008008001
FSA2088-220008008002
FSA20104200010004001
FSA20104-2200010004002
FSA20105200010005001
FSA20105-2200010005002
FSA20106200010006001
FSA20106-2200010006002
FSA20108-2200010008002
FSA20124-2200012004002
FSA20125-2200012005002
FSA20126-2200012006002
FSA20128-2200012008002
