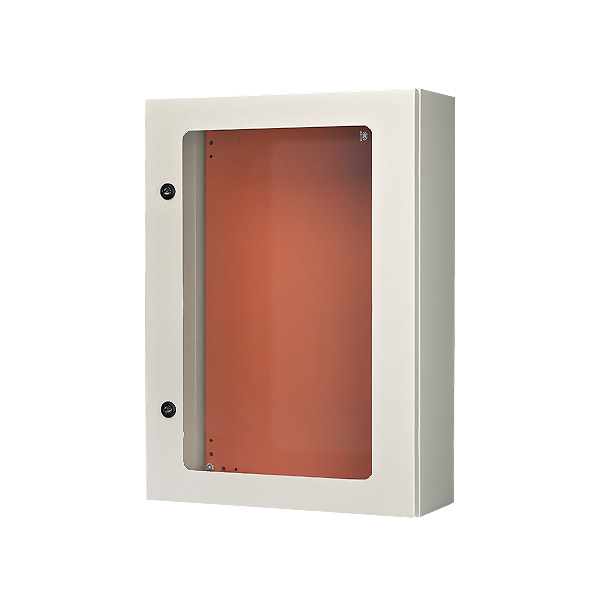

Plexiglass Door Wall Mounting Enclosure

Technical Data / Info Photo Gallery PDF Documents Product Certificates Quick enquiry

Standard Configuration:

Enclosure and door, mounting plate, Bar Lock, Polyurethane door seal, Cable gland plate, gasket and accessories.
Degree of protection: IP66
External mechanical impact resistance: IK10
Surace teatment:
Textrured epoxy plyester powder coating
Meterial and color:
Body and front door: Cold roll stell to paint in RAL7035 or RAL7032
Mounting plate: Galvanized steel or plain steel to paint in RAL2004 smooth finish

View all

Category: Wall Mounting Enclosure

Photo Gallery(Plexiglass Door Wall Mounting Enclosure)

Standard Configuration

Enclosure and door, mounting plate, Bar Lock, Polyurethane door seal, Cable gland plate, gasket and accessories.
Degree of protection: IP66 to EN60529
External mechanical impact resistance: IK10
Surface treatment:
Textrured epoxy polyester powder coating
Material and color:
Body and front door: Cold roll steel to paint in RAL7035 or RAL7032
Mounting plate: Galvanized steel or plain steel to paint in RAL2004 smooth finish

Selection Table

Model	H	W	D	No.of lock	Gland open
MEP403015	400	300	150	1	A
MEP403020	400	300	200	1	A/B
MEP404015	400	400	150	1	C
MEP404020	400	400	200	1	D
MEP503020	500	300	200	1	A/B
MEP504015	500	400	150	1	C
MEP504020	500	400	200	1	D
MEP505020	500	500	200	2	E
MEP604020	600	400	200	2	D
MEP605020	600	500	200	2	E
MEP605025	600	500	250	2	E
MEP606020	600	600	200	2	E
MEP606025	600	600	250	2	E
MEP606030	600	600	300	2	E
MEP705020	700	500	200	2	E
MEP705025	700	500	250	2	E
MEP705030	700	500	300	2	E
MEP706020	700	600	200	2	E
MEP806020	800	600	200	2	E
MEP806025	800	600	250	2	E
MEP806030	800	600	300	2	E
MEP806040	800	600	400	2	E
MEP808020	800	800	200	2	F
MEP808025	800	800	250	2	F
MEP808030	800	800	300	2	F
MEP1006025	1000	600	250	2	E
MEP1006030	1000	600	300	2	E
MEP1008020	1000	800	200	2	F
MEP1008025	1000	800	250	2	F
MEP1008030	1000	800	300	2	F
MEP1206025	1200	600	250	3	E
MEP1206030	1200	600	300	3	E
MEP1208025	1200	800	250	3	F
MEP1208030	1200	800	300	3	F

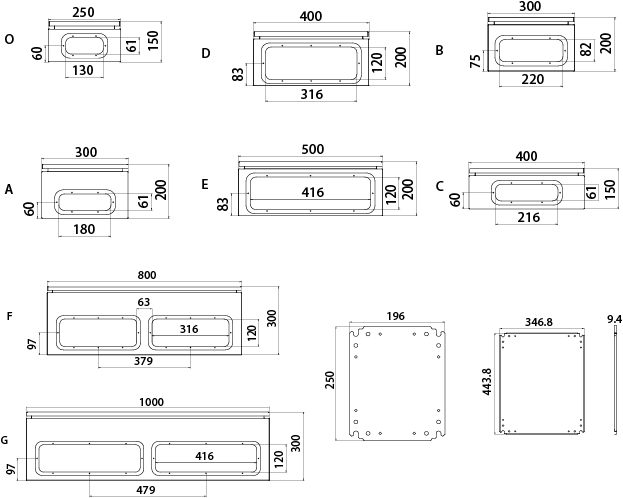

Gland opening diagram
