Insulated Male Disconnectors

Technical Data / Info Photo Gallery PDF Documents Product Certificates Quick enquiry

View all

Category: Wiring Accessories

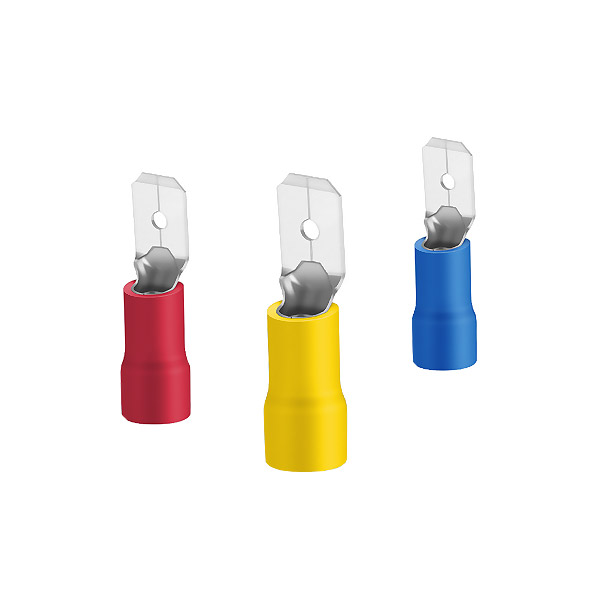

Photo Gallery(Insulated Male Disconnectors)

Selection Table Diagram PDF Documents Product Certificates

Selection Table

0.5~1.5mm²(22-16) Imax=27A

Item No.	Mema Tab	Thickness of Material	Dimension					Color
Item No.	Mema Tab	Thickness of Material	B	dΦ	DΦ	L	H	Color
MDD1.25-110(5)	0.5 × 2.8	0.5	2.8	1.7	4.3	17.7	10.0	Red
MDD1.25-110(8)	0.8 × 2.8	0.8	2.8	1.7	4.3	17.7
MDD1.25-187(5)	0.5 × 4.75	0.5	4.75	1.7	4.3	20.0
MDD1.25-187(8)	0.8 × 4.75	0.8	4.75	1.7	4.3	18.5
MDD1.25-250	0.8 × 6.35	0.4	6.35	1.7	4.3	21.0

1.5~2.5mm²(16-14) Imax=15A

Item No.	Mema Tab	Thickness of Material	Dimension					Color
Item No.	Mema Tab	Thickness of Material	B	dΦ	DΦ	L	H	Color
MDD2-187(5)	0.5 × 4.75	0.5	4.75	2.3	4.3	20.0	10.0	Blue
MDD2-187(8)	0.8 × 4.75	0.8	4.75	2.3	4.3	20.0
MDD2-250	0.8 × 6.35	0.4	6.35	2.3	4.3	21.0

4~6mm²(12-10) Imax=24A

Item No.	Mema Tab	Thickness of Material	Dimension					Color
Item No.	Mema Tab	Thickness of Material	B	dΦ	DΦ	L	H	Color
MDD5.5-250	0.8 × 6.35	0.4	6.35	3.4	5.7	25.0	13.0	Yellow

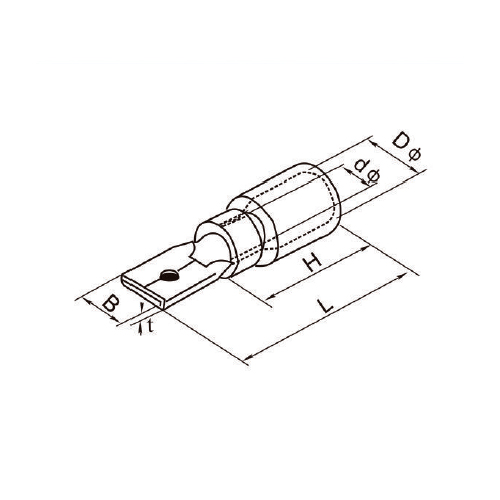

Diagram
