Modular Wall Mounting Enclosure

Technical Data / Info Photo Gallery PDF Documents Product Certificates Quick enquiry

Enclosure, door and modular kits, Bar Lock, Polyurethane door seal, Cable gland plate, gasket and accessories.
Degree of protection: IP66
External mechanical impact resistance: IK10
Surace teatment:
Textrured epoxy plyester powder coating
Meterial and color:
Body and front door: Cold roll stell to paint in RAL7035 or RAL7032

View all

Category: Wall Mounting Enclosure

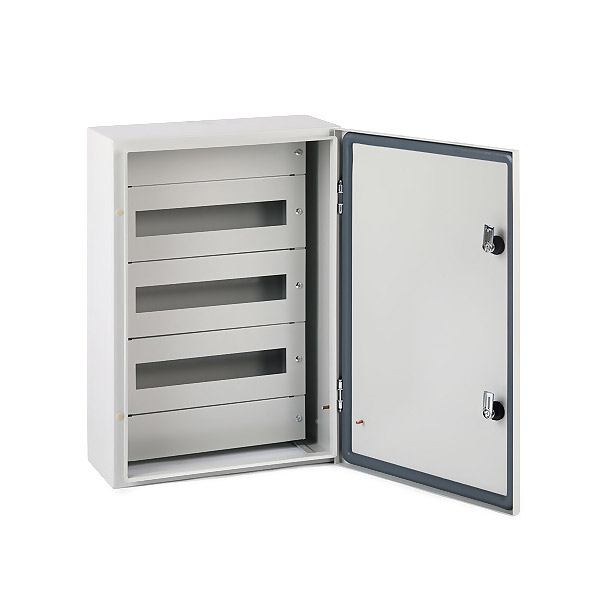

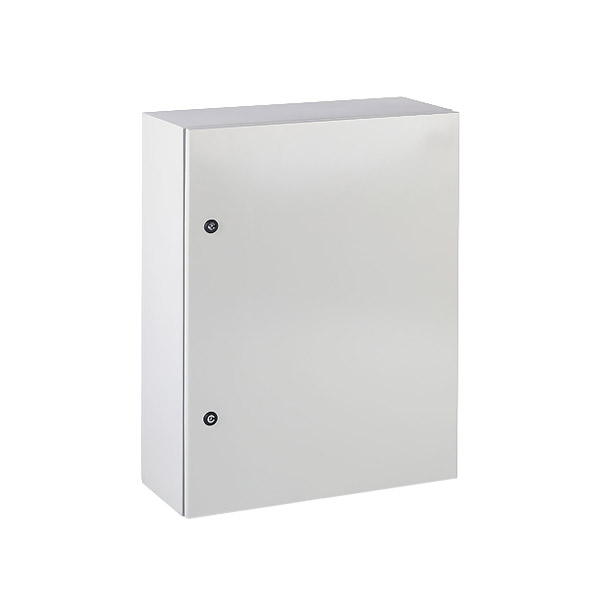

Photo Gallery(Modular Wall Mounting Enclosure)

Standard Configuration

Enclosure and door, mounting plate, Bar Lock, Polyurethane door seal, Cable gland plate, gasket and accessories.
Degree of protection: IP66 to EN60529
External mechanical impact resistance: IK10
Surface treatment:
Textrured epoxy polyester powder coating
Material and color:
Body and front door: Cold roll steel to paint in RAL7035 or RAL7032
Mounting plate: Galvanized steel or plain steel to paint in RAL2004 smooth finish

Selection Table

Model	H	W	D	No.of lock	Gland open
MEIK403020	400	300	200	1	A/B
MEIK404020	400	400	200	1	D
MEIK503020	500	300	200	1	A/B
MEIK504020	500	400	200	1	D
MEIK505020	500	500	200	2	E
MEIK604020	600	400	200	2	D
MEIK605020	600	500	200	2	E
MEIK605025	600	500	250	2	E
MEIK606020	600	600	200	2	E
MEIK606025	600	600	250	2	E
MEIK606030	600	600	300	2	E
MEIK705020	700	500	200	2	E
MEIK705025	700	500	250	2	E
MEIK705030	700	500	300	2	E
MEIK706020	700	600	200	2	E
MEI706025	700	600	250	2	E
MEI706030	700	600	300	2	E
MEIK806020	800	600	200	2	E
MEIK806025	800	600	250	2	E
MEIK806030	800	600	300	2	E
MEIK806040	800	600	400	2	E
MEIK808020	800	800	200	2	F
MEIK808025	800	800	250	2	F
MEIK808030	800	800	300	2	F
MEIK1006025	1000	600	250	2	E
MEIK1006030	1000	600	300	2	E
MEIK1008020	1000	800	200	2	F
MEIK1008025	1000	800	250	2	F
MEIK1008030	1000	800	300	2	F
MEIK1206025	1200	600	250	3	E
MEIK1206030	1200	600	300	3	E
MEIK1208025	1200	800	250	3	F
MEIK1208030	1200	800	300	3	F

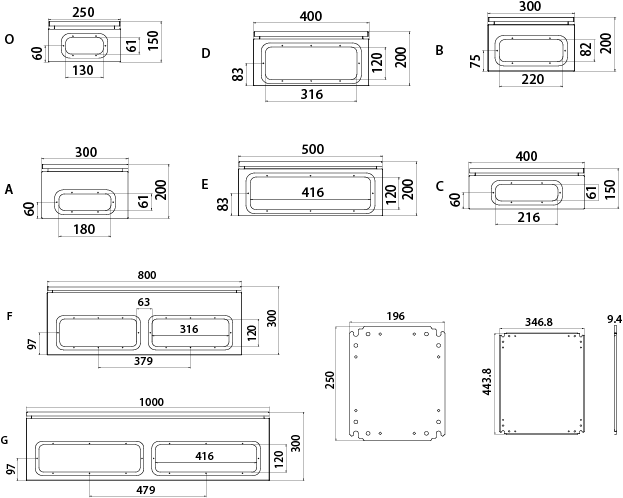

Gland opening diagram
