Circle Cable Clips

Circle Cable Clips

Technical Data / Info Photo Gallery PDF Documents Product Certificates Quick enquiry

Feature: good elasticity and shock resisting. Inserting type. Nail attached in chips. Time saving and cost saving.
Material: chip made of PE, nail made of medium carbon steel
Color: white, grey, black, other colors are available.

View all
Category: Wiring Accessories
Overview Selection Table Diagram PDF Documents Product Certificates
Overview

Feature: good elasticity and shock resisting. Inserting type. Nail attached in chips. Time saving and cost saving.
Material: clip made of PE, nail made of medium carbon steel
Color: white, grey, black, other colors are available.

Selection Table
Item No.H (mm)Circle Path D (mm)Nail (mm)
RYC-4mm5.34.01.7 X 14
RYC-5mm6.35.01.7 X 14
RYC-6mm7.46.01.85 X 16
RYC-7mm8.47.01.85 X 18
RYC-8mm9.48.01.95 X 19
RYC-9mm10.49.02.05 X 22
RYC-10mm11.410.02.20 X 23
RYC-12mm13.412.02.20 X 25
RYC-14mm16.414.02.35 X 30
RYC-16mm19.016.02.35 X 32
RYC-18mm19.718.02.6 X 38
RYC-20mm22.220.02.7 X 40
RYC-22mm25.022.02.9 X 43
RYC-25mm27.725.03.1 X 50
RYC-30mm33.130.03.5 X 55
RYC-32mm35.632.03.5 X 55
RYC-35mm36.635.03.5 X 60
RYC-40mm45.240.03.5 X 65

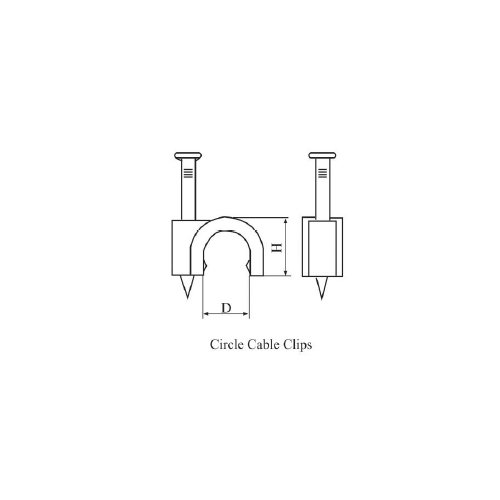

Diagram
