Insulated Bullet Disconnectors

Technical Data / Info Photo Gallery PDF Documents Product Certificates Quick enquiry

View all

Category: Wiring Accessories

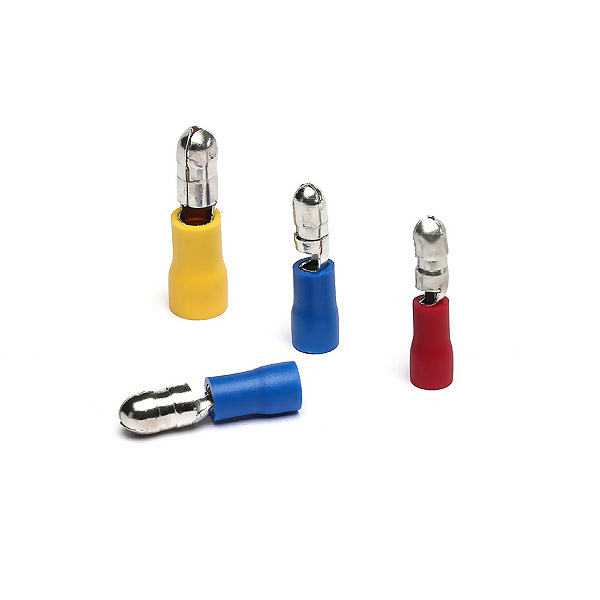

Photo Gallery(Insulated Bullet Disconnectors)

Selection Table Diagram PDF Documents Product Certificates

Selection Table

0.5~1.5mm²(22-16) Imax=10A

Item No.	Thickness of Material	Dimension						Color
Item No.	Thickness of Material	bΦ	F	DΦ	dΦ	H	L	Color
MPD1.25-156	0.4	4.0	11.0	7.7	1.7	10.0	21.0	Red

1.5~2.5mm²(16-14) Imax=15A

Item No.	Thickness of Material	Dimension						Color
Item No.	Thickness of Material	bΦ	F	DΦ	dΦ	H	L	Color
MPD2-156	0.4	4.0	16.0	3.3	2.3	10.0	21.0	Blue
MPD25-195	0.4	5.0	16.0	3.3	2.3	10.0	21.0	Blue

4~6mm²(12-10) Imax=24A

Item No.	Thickness of Material	Dimension						Color
Item No.	Thickness of Material	bΦ	F	DΦ	dΦ	H	L	Color
MPD5.5-195	0.4	4.0	11.0	4.5	3.4	13.0	25.0	Yellow

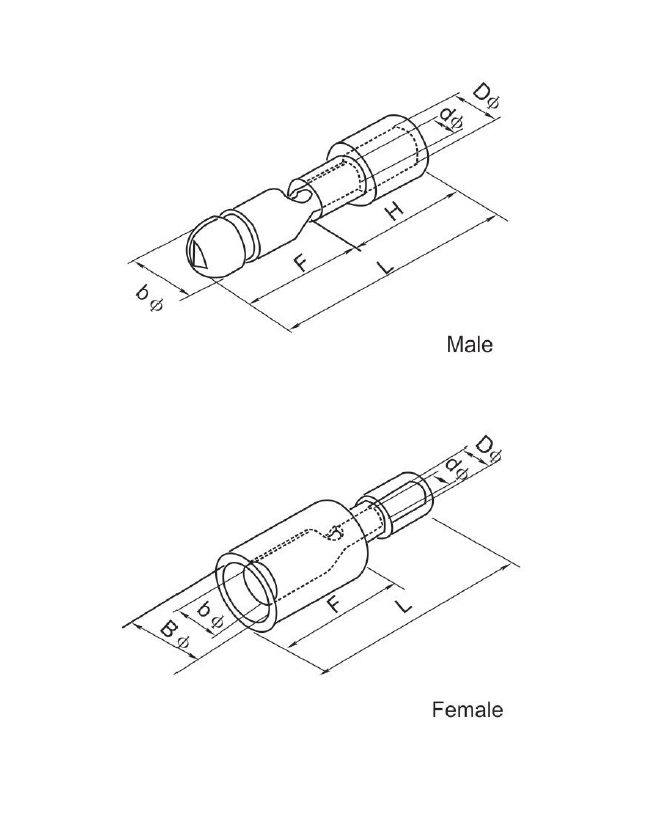

Diagram
