0.5~1.5mm2(22-16) Imax=10A

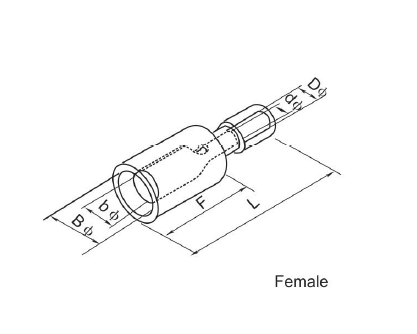

| Item No. | Thickness of Material (mm) | Dimension (mm) | Color | ||||
|---|---|---|---|---|---|---|---|
| b Φ | F | D Φ | d Φ | L | |||
| FRD1.25-156 | 0.4 | 4.0 | 13.0 | 2.7 | 1.7 | 24.5 | Red |
0.5~1.5mm2(16-14) Imax=15A
| Item No. | Thickness of Material (mm) | Dimension (mm) | Color | ||||
|---|---|---|---|---|---|---|---|
| b Φ | F | D Φ | d Φ | L | |||
| FRD2-156 | 0.4 | 4.0 | 6.3 | 3.3 | 2.3 | 24.5 | Blue |
| FRD2-195 | 0.4 | 5.0 | 7.0 | 3.3 | 2.3 | 25.5 | Blue |
4~6mm2(12-10) Imax=24A
| Item No. | Thickness of Material (mm) | Dimension (mm) | Color | ||||
|---|---|---|---|---|---|---|---|
| b Φ | F | D Φ | d Φ | L | |||
| FRD5.5-195 | 0.4 | 5.0 | 7.0 | 4.5 | 3.4 | 29.5 | Yellow |
