0.5~1.5mm²(22-16) Imax=19A

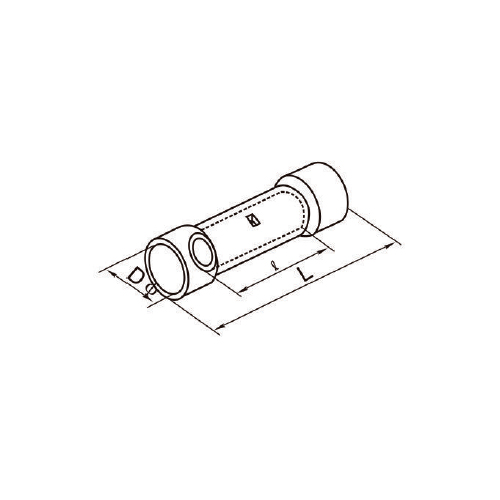

| Item No. | Cable Size | Dimension | Color | ||||
|---|---|---|---|---|---|---|---|
| A.W.G | mm² | I | DΦ | L | Imax | ||
| BV1.25 | 22~16 | 0.5~1.5 | 15.0 | 1.7 | 26.0 | 19A | Red |
| BV2 | 16~14 | 1.5~2.5 | 15.0 | 2.3 | 26.0 | 27A | Blue |
| BV5.5 | 12~10 | 4~6 | 15.0 | 3.4 | 26.0 | 48A | Yellow |
| BV8 | #8 | 6~10 | 21.0 | 4.5 | 32.0 | 62A | Red |
| BV14 | #6 | 10~16 | 26.0 | 5.8 | 42.0 | 88A | Blue |
| BV22 | #4 | 16~25 | 29.0 | 7.7 | 50.0 | 115A | Yellow |
| BV38 | #2 | 35~50 | 32.0 | 9.4 | 55.0 | 160A | Red |
| Item No. | Cable Size | Dimension | Color | ||||
|---|---|---|---|---|---|---|---|
| A.W.G | mm² | I | DΦ | L | Imax | ||
| PVT1.25 | 22~16 | 0.5~1.5 | 8.0 | 1.7 | 16.0 | 19A | Red |
| PV2 | 16~14 | 1.5~2.5 | 8.0 | 2.3 | 16.0 | 27A | Blue |
| PVT5.5 | 12~10 | 4~6 | 8.5 | 3.4 | 20.5 | 48A | Yellow |
