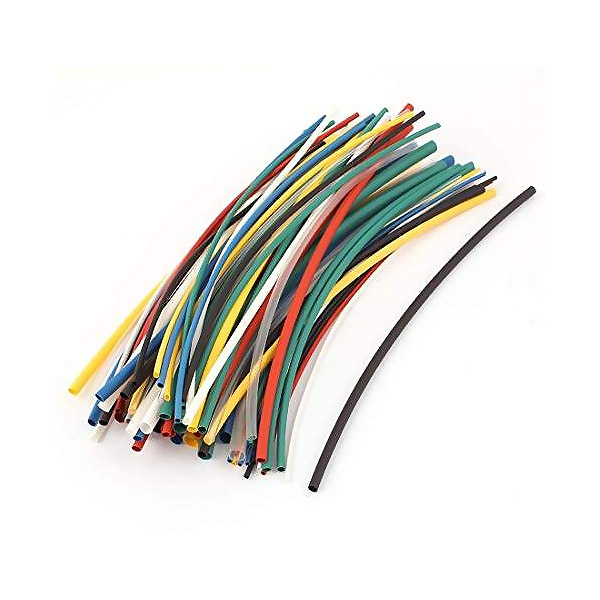

Heat Shrinkable Tubing

Technical Data / Info Photo Gallery PDF Documents Product Certificates Quick enquiry

Function: wire coat and insulation make the joint of terminal block and wire insulateddivide the colors Water-proof Protection and insulation
Standard color: black, white, red, blue, yellow, green, brown, grey, orange and purple

View all

Category: Wiring Accessories

Photo Gallery(Heat Shrinkable Tubing)

Overview

Function: wire coat and insulation make the joint of terminal block and wire insulated divide the colors Water-proof Protection and insulation
Standard color: black, white, red, blue, yellow, green, brown, grey, orange and purple

Selection Table

Item No.	As Supplied		After Shrinking		Packing (Mtrs / Roll)
Item No.	I.D (mm)	Thickness	I.D (mm)	Thickness	Packing (Mtrs / Roll)
DRS-1	1.0	0.2±0.05	0.5	0.4±0.05	400
DRS-1.5	1.5	0.2±0.05	0.75	0.4±0.05	300
DRS-2	2.0	0.25±0.05	1.0	0.45±0.1	200
DRS-2.5	2.5	0.25±0.05	1.25	0.45±0.1
DRS-3	3.0	0.25±0.05	1.5	0.45±0.1
DRS-3.5	3.5	0.25±0.05	1.75	0.45±0.1	100
DRS-4	4.0	0.25±0.05	2.0	0.45±0.1
DRS-5	5.0	0.35±0.05	2.5	0.55±0.1
DRS-6	6.0	0.35±0.05	3.0	0.55±0.1
DRS-7	7.0	0.35±0.05	3.5	0.55±0.1
DRS-8	8.0	0.35±0.05	4.0	0.55±0.1
DRS-9	9.0	0.35±0.05	4.5	0.55±0.1
DRS-10	10.0	0.35±0.05	5.0	0.60±0.1
DRS-11	11.0	0.35±0.05	5.5	0.60±0.1
DRS-12	12.0	0.35±0.1	6.0	0.70±0.1
DRS-13	13.0	0.35±0.1	6.5	0.70±0.1
DRS-14	14.0	0.35±0.1	7.0	0.70±0.1
DRS-15	15.0	0.35±0.1	7.5	0.70±0.1
DRS-16	16.0	0.35±0.1	8.0	0.70±0.1
DRS-17	17.0	0.35±0.1	8.5	0.70±0.1	50
DRS-18	18.0	0.40±0.1	9.0	0.80±0.1
DRS-20	20.0	0.50±0.1	10.0	0.90±0.1
DRS-22	22.0	0.50±0.1	11.0	0.90±0.1
DRS-25	25.0	0.50±0.1	12.5	0.90±0.1
DRS-28	28.0	0.50±0.1	14.0	0.90±0.1
DRS-30	30.0	0.50±0.1	15.0	1.00±0.2	25
DRS-35	35.0	0.50±0.1	17.5	1.00±0.2
DRS-40	40.0	0.50±0.1	20.0	1.00±0.2
DRS-50	50.0	0.50±0.1	25.0	1.00±0.2
DRS-60	60.0	0.60±0.1	30.0	1.20±0.2
DRS-70	70.0	0.60±0.1	35.0	1.20±0.2
DRS-80	80.0	0.60±0.1	40.0	1.20±0.2
DRS-90	90.0	0.60±0.1	45.0	1.30±0.2
DRS-100	100.0	0.70±0.1	50.0	1.30±0.2
DRS-120	120.0	0.70±0.1	60.0	1.30±0.2
DRS-150	150.0	0.70±0.1	75.0	1.60±0.2
