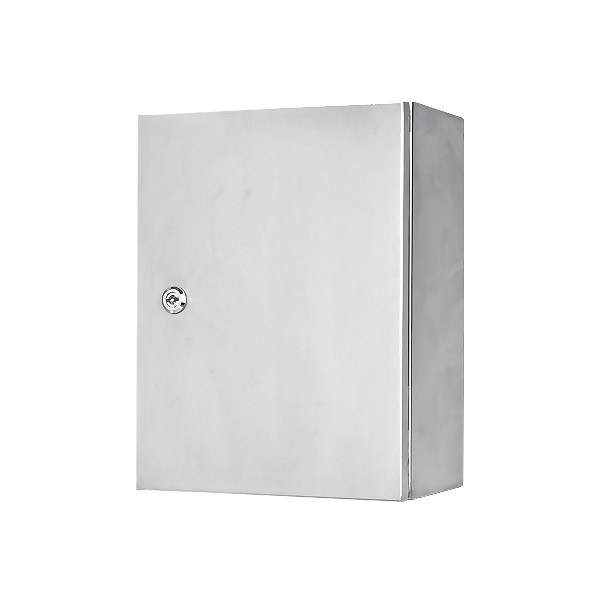

Stainless Steel Enclosure

Technical Data / Info Photo Gallery PDF Documents Product Certificates Quick enquiry

Enclosure and door, Mounting plate, Bar Lock, Polyurethane door seal
Degree of protection: IP66
Material:
Body and front door: AISI304 or AISI316 stainless steel
Mounting plate: Galvanized steel

View all

Category: Wall Mounting Enclosure

Photo Gallery(Stainless Steel Enclosure)

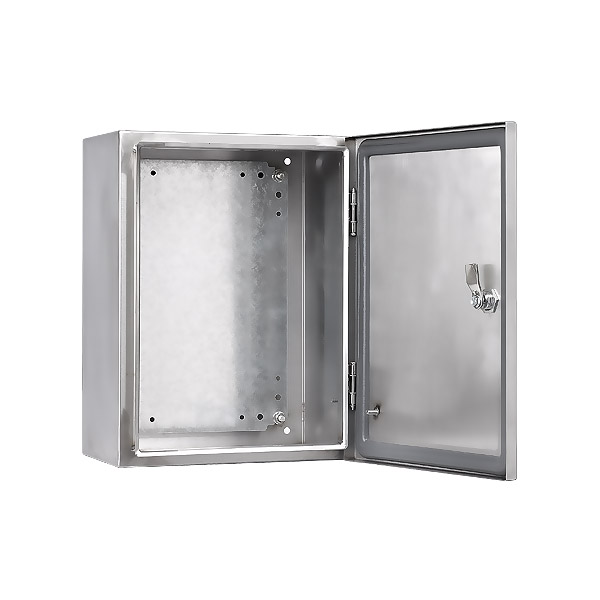

Standard Configuration

Enclosure and door
Mounting plate
Bar Lock
Polyurethane door seal
Degree of protection :IP66
Material:Body and front door made of AISI304 or AISI316 stainless steel
Mounting plate: Galvanized steel

Selection Table

Model	H	W	D	No.of lock
SME252015	250	200	150	1
SME302015	300	200	150	1
SME302515	300	250	150	1
SME302520	300	250	200	1
SME303020	300	300	200	1
SME303030	300	300	300	1
SME403015	400	300	150	1
SME403020	400	300	200	1
SME404015	400	400	150	1
SME404020	400	400	200	1
SME503020	500	300	200	1
SME504015	500	400	150	1
SME504020	500	400	200	1
SME505020	500	500	200	2
SME604020	600	400	200	2
SME605020	600	500	200	2
SME605025	600	500	250	2
SME606020	600	600	200	2
SME606025	600	600	250	2
SME606030	600	600	300	2
SME705020	700	500	200	2
SME705025	700	500	250	2
SME806020	800	600	200	2
SME806025	800	600	250	2
SME806030	800	600	300	2
SME1006025	1000	600	250	2
SME1006030	1000	600	300	2
SME1008020	1000	800	200	2
SME1008025	1000	800	250	2
SME1008030	1000	800	300	2
SME1206025	1200	600	250	3
SME1206030	1200	600	300	3
SME1208025	1200	800	250	3
