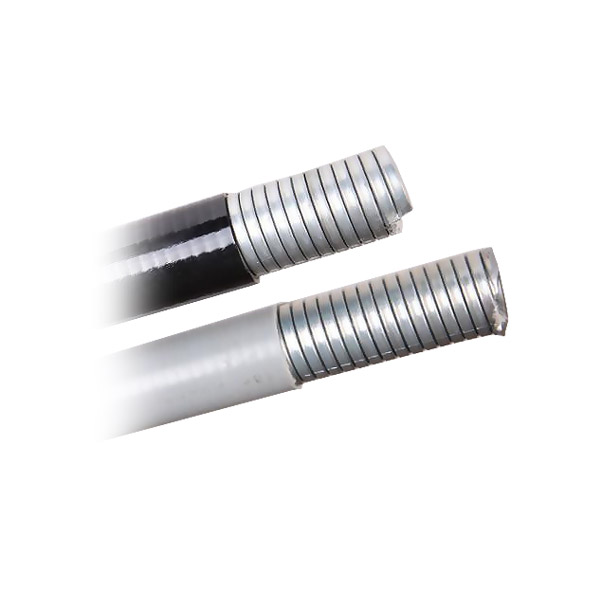

JSB Liquid Tight Flexible Metal Conduit

JSB Liquid Tight Flexible Metal Conduit

Technical Data / Info Photo Gallery PDF Documents Product Certificates Quick enquiry

PVC cover, Halogen-free, low smoke, lead-free
Temperature: -20℃ to 70℃, intermittent up to +100℃.
Hot dipping galvanized steel core, square-locked with cord packing, thick smooth PVC cover
Flame self-extinguish, sunlight and UV resistant, suitable for outside installation.

View all
Category: Wiring Accessories
Overview Selection Table PDF Documents Product Certificates
Overview

PVC cover, Halogen-free, low smoke, lead-free
Temperature: -20℃ to 70℃, intermittent up to +100℃.
Hot dipping galvanized steel core, square-locked with cord packing, thick smooth PVC cover
Flame self-extinguish, sunlight and UV resistant, suitable for outside installation.

Selection Table
Item No.BACReel Length
Internal Dia. (mm)External Dia. (mm)Min. Bend Radius(mm)
JSB-10711.840100m
JSB-1210.714.245100m
JSB-1612.517.850100m
JSB-201621.18050m
JSB-252126.411050m
JSB-3226.733.114550m
JSB-4035.441.818030m
JSH-5040.447.924030m
JSH-6351.659.934520m
