0.5~1.5mm²(22-16) Imax=10A

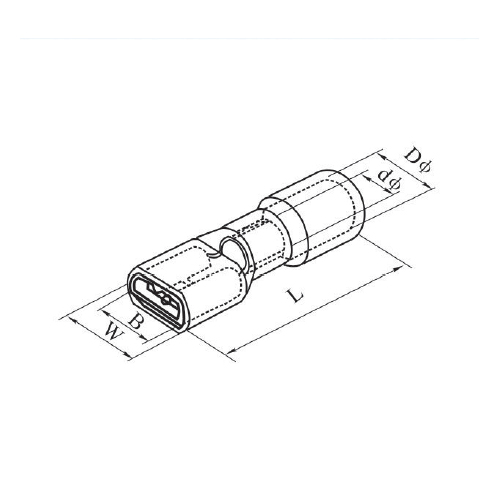

| Item No. | Mema Tab | Dimension | Color | ||||
|---|---|---|---|---|---|---|---|
| W | B | DΦ | dΦ | L | |||
| FDFD1.25-187(5) | 0.5 × 4.75 | 5.6 | 5.0 | 3.8 | 1.7 | 20.0 | Red |
| FDFD1.25-187(8) | 0.8 × 4.75 | 5.6 | 5.0 | 3.8 | 1.7 | 20.0 | |
| FDFD1.25-250 | 0.8 × 6.35 | 7.4 | 6.6 | 3.8 | 1.7 | 21.5 | |
1.5~2.5mm²(16-14) Imax=15A
| Item No. | Thickness of Material | Dimension | Color | ||||
|---|---|---|---|---|---|---|---|
| W | B | DΦ | dΦ | L | |||
| FDFD2-187(5) | 0.5 × 4.75 | 5.6 | 5.0 | 4.3 | 2.3 | 20.0 | Blue |
| FDFD2-187(8) | 0.8 × 4.75 | 5.6 | 5.0 | 4.3 | 2.3 | 20.0 | |
| FDFD2-250 | 0.8 × 6.35 | 7.4 | 6.6 | 4.3 | 2.3 | 21.5 | |
4~6mm²(12-10) Imax=24A
| Item No. | Thickness of Material | Dimension | Color | ||||
|---|---|---|---|---|---|---|---|
| bΦ | F | DΦ | dΦ | L | |||
| FDFD5.5-250 | 0.8 × 6.35 | 7.4 | 6.6 | 5.7 | 3.4 | 25.5 | Yellow |
