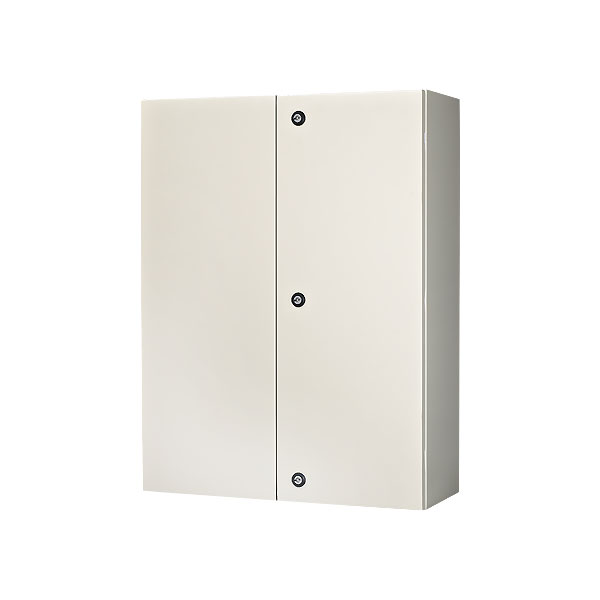

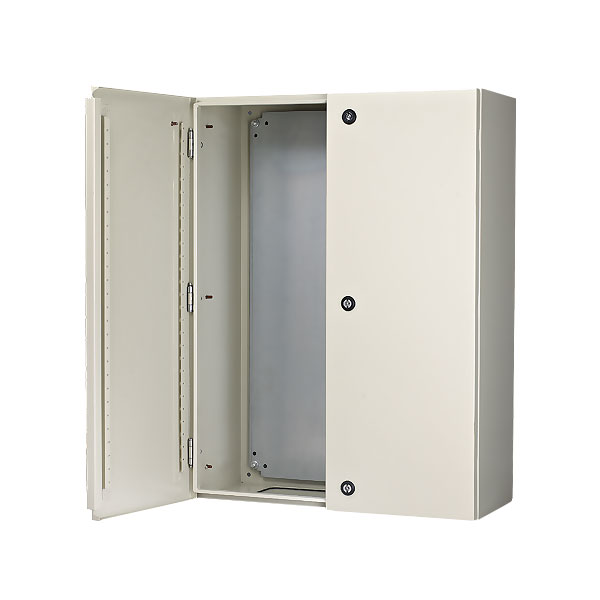

Enclosure and door, mounting plate, Bar Lock or MS821, Polyurethane door seal, Cable gland plate, gasket and accessories.
Degree of protection: IP55
External mechanical impact resistance: IK10
Surace teatment:
Textrured epoxy plyester powder coating
Meterial and color:
Body and front door: Cold roll stell to paint in RAL7035 or RAL7032
Mounting plate: Galvanized steel or plain steel to paint in RAL2004 smooth finish
Enclosure and door, mounting plate, Bar Lock, Polyurethane door seal, Cable gland plate, gasket and accessories.
Degree of protection: IP66 to EN60529
External mechanical impact resistance: IK10
Surface treatment:
Textrured epoxy polyester powder coating
Material and color:
Body and front door: Cold roll steel to paint in RAL7035 or RAL7032
Mounting plate: Galvanized steel or plain steel to paint in RAL2004 smooth finish

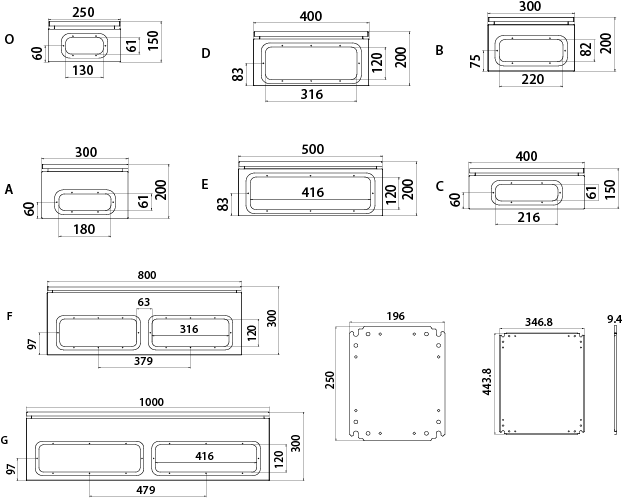

| Model | H | W | D | No.of lock | Gland open |
|---|---|---|---|---|---|
| MED10010025 | 1000 | 1000 | 250 | 3 | G |
| MED12010025 | 1200 | 1000 | 250 | 3 | G |
| MED12010030 | 1200 | 1000 | 300 | 3 | G |
| MED12010035 | 1200 | 1000 | 350 | 3 | G |
| MED12010040 | 1200 | 1000 | 400 | 3 | G |
| MED14010025 | 1400 | 1000 | 250 | 4 | G |
| MED14010030 | 1400 | 1000 | 300 | 4 | G |
| MED14010035 | 1400 | 1000 | 350 | 4 | G |
| MED14010040 | 1400 | 1000 | 400 | 4 | G |
| MED14012025 | 1400 | 1200 | 250 | 4 | G |
| MED14012030 | 1400 | 1200 | 300 | 4 | G |
| MED14012035 | 1400 | 1200 | 350 | 4 | G |
| MED14012040 | 1400 | 1200 | 400 | 4 | G |
| MED16010025 | 1600 | 1000 | 250 | 4 | G |
| MED16010030 | 1600 | 1000 | 300 | 4 | G |
| MED16010035 | 1600 | 1000 | 350 | 4 | G |
| MED16010040 | 1600 | 1000 | 400 | 4 | G |
| MED16012025 | 1600 | 1200 | 250 | 4 | G |
| MED16012030 | 1600 | 1200 | 300 | 4 | G |
| MED16012035 | 1600 | 1200 | 350 | 4 | G |
| MED16012040 | 1600 | 1200 | 400 | 4 | G |
