Insulated Spade Terminals

Technical Data / Info Photo Gallery PDF Documents Product Certificates Quick enquiry

View all

Category: Wiring Accessories

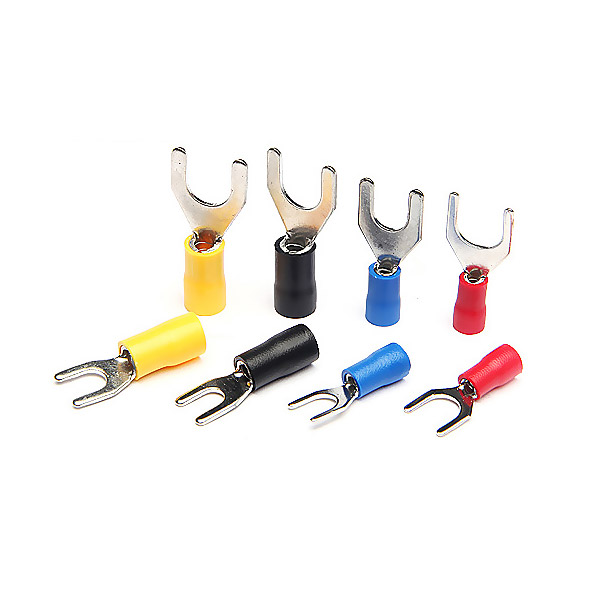

Photo Gallery(Insulated Spade Terminals)

Selection Table Diagram PDF Documents Product Certificates

Selection Table

0.5~1.5mm² (22-16) Imax=19A

Item No.	USA Screw	Dimension						Color
Item No.	USA Screw	d2	B	L	F	H	DΦ	Color
SVC1.25-3	#4	3.2	5.7	21.2	6.5	10.0	4.3	Red
SVS1.25-3.5	#6	3.7	5.7	21.2	6.5
SVL1.25-3.5	#6	3.7	6.4	21.2	6.5
SVS1.25-4	#8	4.3	6.4	21.2	6.5
SVM1.25-4	#8	4.3	7.2	21.2	6.5
SVL1.25-4	#8	4.3	8.1	21.2	6.5
SVS1.25-5	#10	5.3	8.1	21.2	6.5
SVL1.25-5	#10	5.3	9.5	21.2	6.5
SVS1.25-6	1/4	6.5	9.5	21.2	6.5
SVL1.25-6	1/4	6.5	12.0	27.2	11.0

1.25~2.5mm² (16-14) Imax=27A

Item No.	USA Screw	Dimension						Color
Item No.	USA Screw	d2	B	L	F	H	DΦ	Color
SV2-3	#4	3.2	5.7	21.2	6.5	10.0	4.9	Red
SVS2-3.5	#6	3.7	5.7	21.2	6.5
SVL2-3.5	#6	3.7	6.0	21.2	6.5
SVS2-4	#8	4.3	6.4	21.2	6.5
SVM2-4	#8	4.3	7.2	21.2	6.5
SVL2-4	#8	4.3	8.1	21.2	6.5
SVS2-5	#10	5.3	8.1	21.2	6.5
SVL2-5	#10	5.3	9.5	21.2	6.5
SVS2-6	1/4	6.5	9.5	21.2	6.5
SVL2-6	1/4	6.5	12.0	27.2	11.0

2.5~4mm² (14-12) Imax=37A

Item No.	USA Screw	Dimension						Color
Item No.	USA Screw	d2	B	L	F	H	DΦ	Color
SV3.5-3	#4	3.2	5.7	24.8	7.0	12.5	6.2	Black
SV3.5-4	#8	4.3	8.0	24.8	7.0
SV3.5-5	#10	5.3	8.0	24.8	7.0
SV3.5-6	1/4	6.5	12.0	28.0	12.1

4~6mm² (12-10) Imax=48A

Item No.	USA Screw	Dimension						Color
Item No.	USA Screw	d2	B	L	F	H	DΦ	Color
SV5.5-3.5	#6	3.7	8.3	25.2	7.5	12.5	6.7	Yellow
SVS5.5-4	#8	4.3	8.3	25.2	7.5
SVL5.5-4	#8	4.3	9.0	25.2	7.5
SV5.5-5	#10	5.3	9.0	25.2	7.5
SVS5.5-6	1/4	6.5	9.0	25.2	7.5
SVL5.5-6	1/4	6.5	12.0	31.2	12.0
SV5.5-8	5/16	8.4	14.0	30.0	11.5

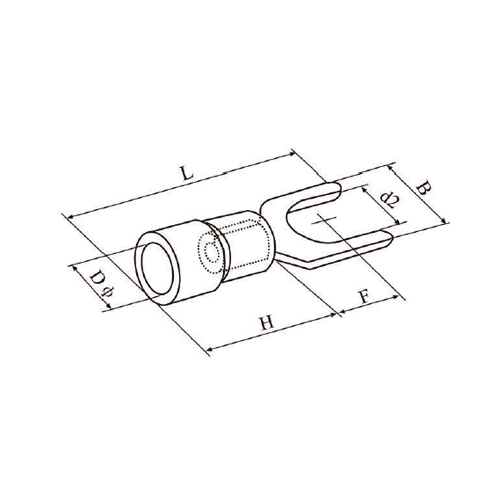

Diagram
