Insulated Ring Terminals

Technical Data / Info Photo Gallery PDF Documents Product Certificates Quick enquiry

View all

Category: Wiring Accessories

Photo Gallery(Insulated Ring Terminals)

Selection Table Diagram PDF Documents Product Certificates

Selection Table

0.5~1.5mm² (22-16) Imax=19A

Item No.	USA Screw	Dimension						Color
Item No.	USA Screw	d2	B	L	F	H	DΦ	Color
RV1.25-3	#4	3.2	5.7	17.8	4.95	10.0	4.3	Red
RVS1.25-3.5	#6	3.7	5.7	17.8	4.95
RVM1.25-3.5	#6	3.7	6.6	20.1	6.3
RVL1.25-3.5	#6	3.7	8.0	21.5	7.0
RVS1.25-4	#8	4.3	6.6	20.1	6.3
RVL1.25-4	#8	4.3	8.0	21.5	7.0
RV1.25-5	#10	5.3	8.0	21.5	7.0
RVl1.25-5	#10	5.3	9.8	23.0	8.5
RV1.25-6	1/4	6.5	11.6	27.5	11.1
RVS1.25-6	1/4	6.5	9.8	23.0	8.5
RV1.25-8	5/16	8.4	11.6	27.5	11.1
RV1.25-10	3/8	10.5	13.6	31.6	13.9
RV1.25-12	1/2	13.0	19.2	36.0	16.0

1.5~2.5mm² (16-14) Imax=27A

Item No.	USA Screw	Dimension						Color
Item No.	USA Screw	d2	B	L	F	H	DΦ	Color
RV2-3	#4	3.2	6.6	17.8	4.3	10.0	4.9	Blue
RVS2-3.5	#6	3.7	6.6	17.8	4.3
RVM2-3.5	#6	3.7	6.6	21.0	7.0
RVL2-3.5	#6	3.7	8.5	22.5	7.75
RVS2-4	#8	4.3	6.6	21.0	7.0
RVL2-4	#8	4.3	8.5	22.5	7.75
RVS2-5	#10	5.3	8.5	22.5	7.75
RVL2-5	#10	5.3	9.5	22.5	7.25
RV2-6	1/4	6.5	12.0	27.6	11.0
RV2-8	5/16	8.4	12.0	27.6	11.0
RV2-10	3/8	10.5	13.6	30.2	13.9
RV2-12	1/2	13.0	19.2	36.5	16.5

2.5~4mm² (14-12) Imax=37A

Item No.	USA Screw	Dimension						Color
Item No.	USA Screw	d2	B	L	F	H	DΦ	Color
RV3.5-4	#8	4.3	8.0	24.5	7.7	12.5	6.2	Black
RVS3.5-5	#10	5.3	8.0	24.5	7.7
RVL3.5-5	#10	5.3	12.0	27.9	7.7
RV3.5-6	1/4	6.5	12.0	27.9	7.7

4~6mm² (12-10) Imax=48A

Item No.	USA Screw	Dimension						Color
Item No.	USA Screw	d2	B	L	F	H	DΦ	Color
RV5.5-3.5	#6	3.7	7.2	21.4	5.9	12.5	6.7	Yellow
RVS5.5-4	#8	4.3	7.2	21.5	5.9
RVL5.5-4	#8	4.3	9.5	25.5	8.3
RV5.5-5	#10	5.3	9.5	25.5	8.3
RV5.5-6	1/4	6.5	12.0	31.5	13.0
RV5.5-8	5/16	8.4	15.0	33.7	13.7
RV5.5-10	3/8	10.5	15.0	33.7	13.7
RV5.5-12	1/2	13.0	19.2	38.1	16.0

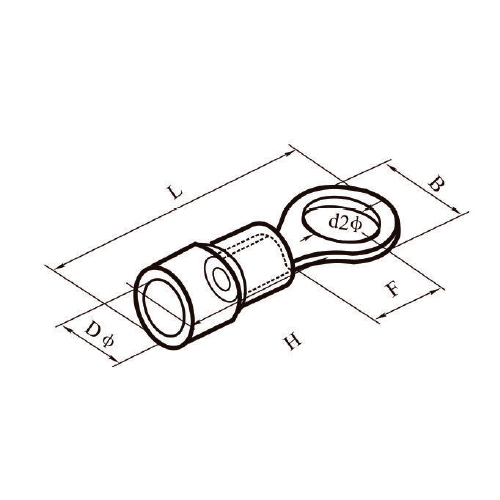

Diagram
