IP65 Surface Distribution Boxes

IP65 Surface Distribution Boxes

Technical Data / Info Photo Gallery PDF Documents Product Certificates Quick enquiry

CDN: Frame and base in ABS RAL 7035 with grey transparent PC tinted window, UV protection
CDP: Frame and base in PC RAL 7035 with grey transparent PC tinted window, UV protection, IP65 surface-sealable

View all
Category: Plastic Enclosure
Standard Configuration Selection Table PDF Documents Product Certificates
Standard Configuration

CDN: Frame and base in ABS RAL 7035 with grey transparent PC tinted window, UV protection
CDP: Frame and base in PC RAL 7035 with grey transparent PC tinted window, UV protection, IP65 surface-sealable

Selection Table
ModelNo. of modulesDimensionsPower dissipation according
         to temperature increase ℃ P(W)
  H x W x D20 ℃25 ℃30 ℃35 ℃40 ℃

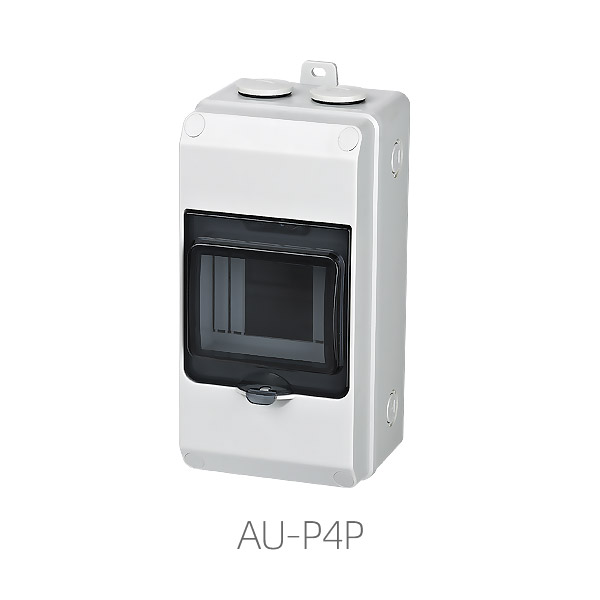

AU-P4P1X4 DIN rail221X100X948.911.113.315.517.8

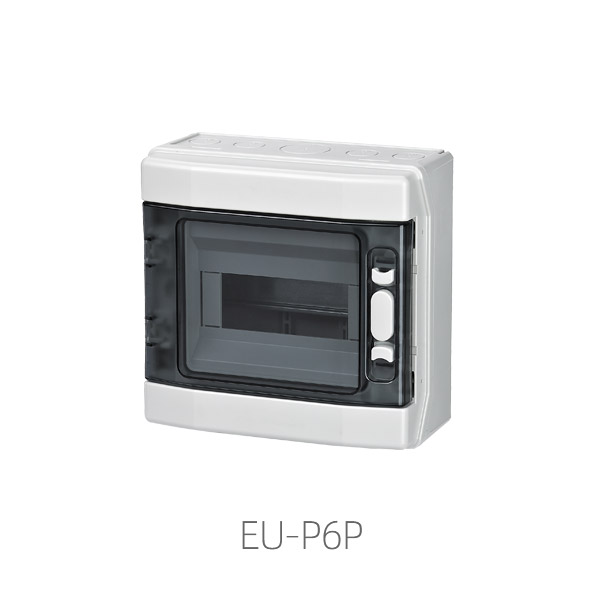

EU-P6P1X6 DIN rail231X202X11410.112.615.117.720.2

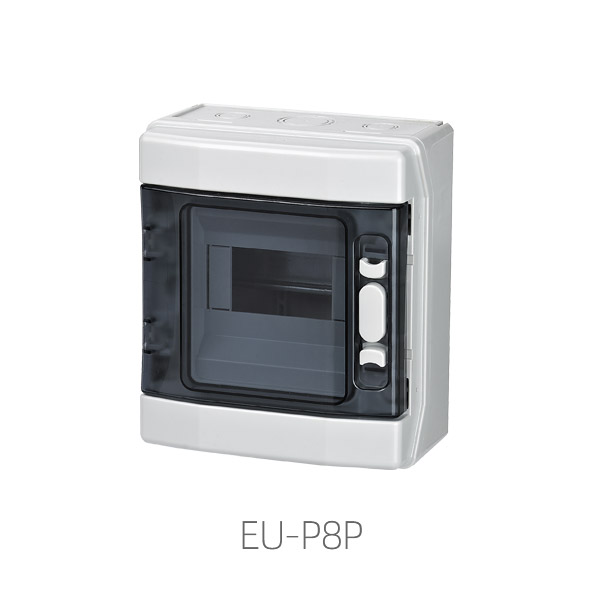

EU-P8P1X8 DIN rail231X238X11411.614.517.420.323.1

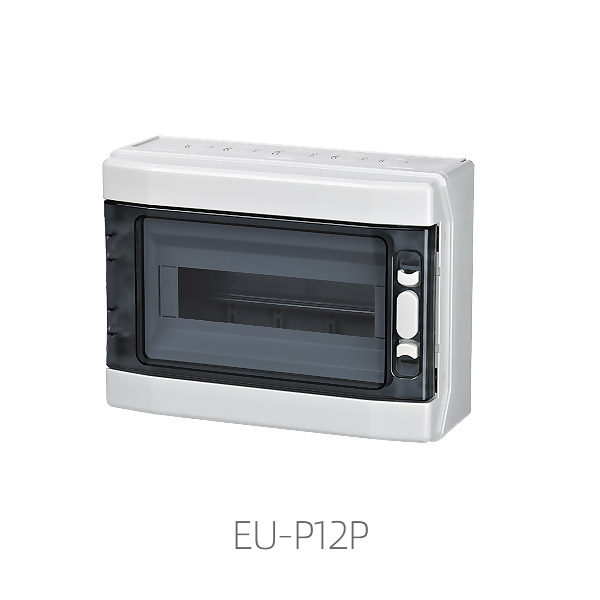

EU-P12P1X12 DIN rail231X310X11416.620.724.829.033.1

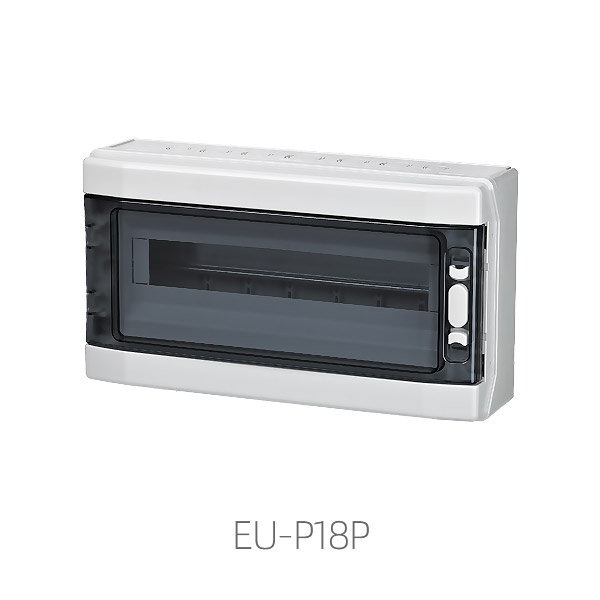

EU-P18P1X18 DIN rail231X418X11423.128.934.740.446.2

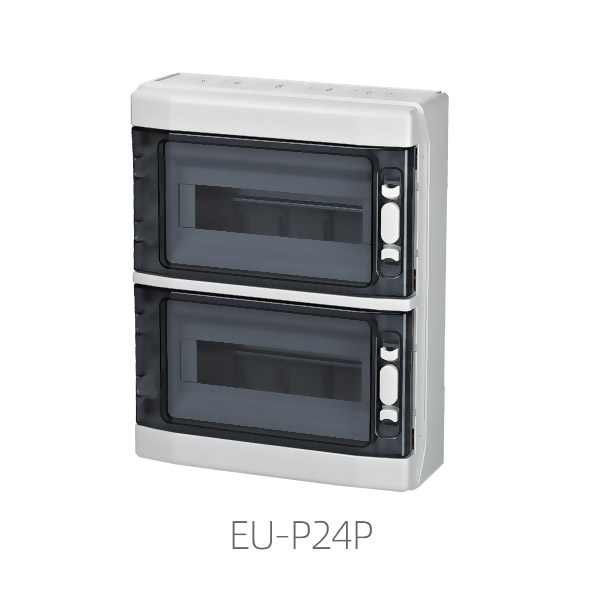

EU-P24P2X12(24) DIN rail392X310X11425.932.338.845.351.7
